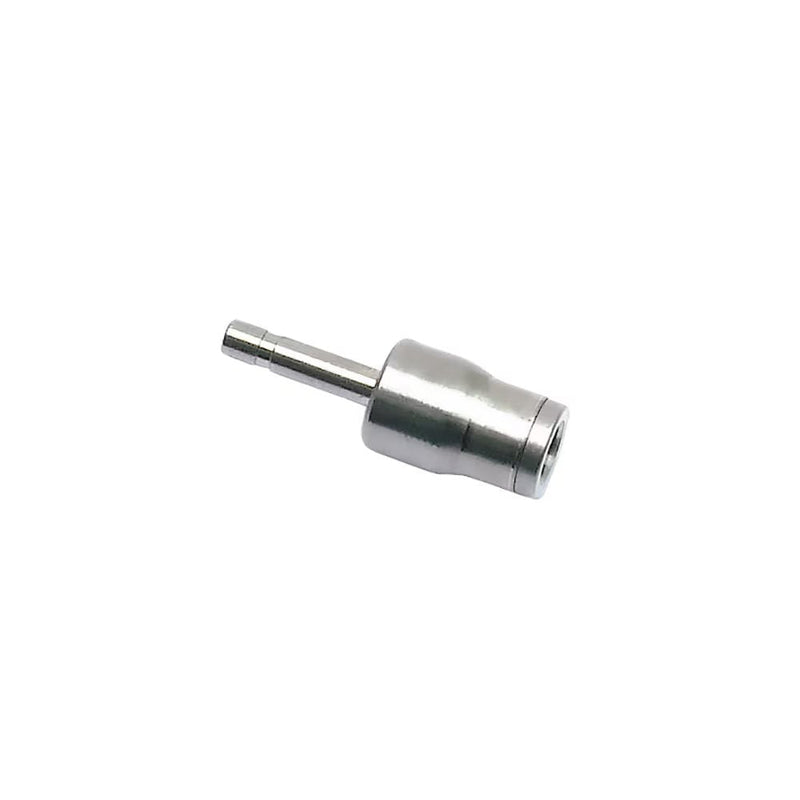

3668 06 04 by Parker | Legris Plug-In Increaser | 6 mm Tube Size x 4 mm Tube Size | 36 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $29.36

$245.63

$245.63 - $245.63

$245.63

$216.27

$216.27 - $216.27

$216.27

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Accessories :3668 Plug-In Increaser

Package Quantity: 10 Units

Specifications for Variant SKU: 3668 06 04 Parker \| 10 \|
Series:	3668 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD1	ØD2	G	L	L1	L2	Kg
3668 06 04	6 mm	4 mm	12 mm	36 mm	17 mm	21.5 mm	.010 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
