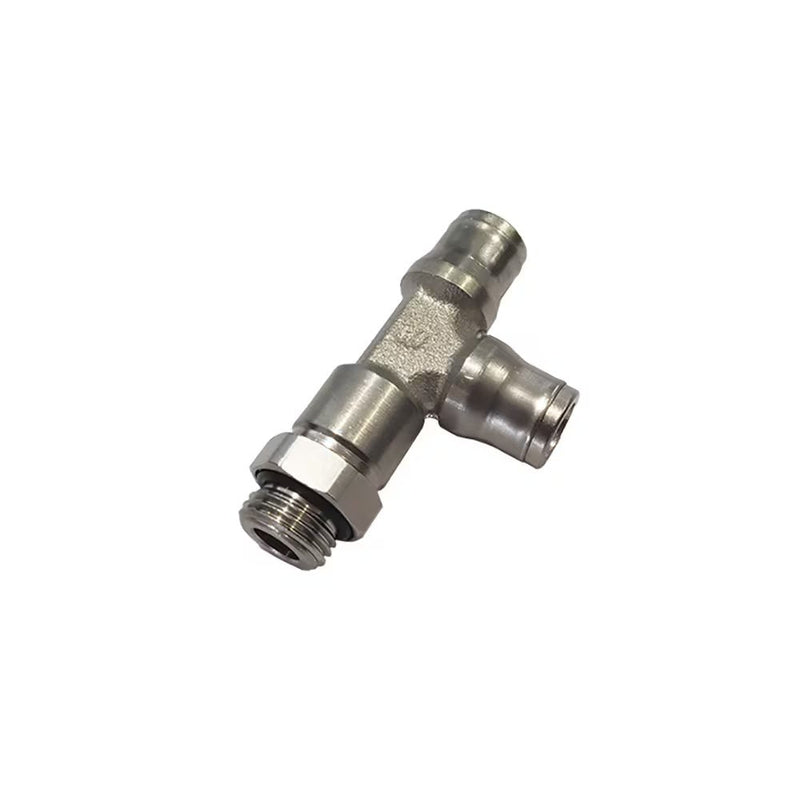

3693 08 13 by Parker | Legris Stud Swivel Fitting | 8 mm Tube Size x 1/4" Male BSPP Thread | 16 mm Hex | Tee | Nickel-Plated Brass | Pack of 10

Save $14.33

$157.62

$157.62 - $157.62

$157.62

$143.29

$143.29 - $143.29

$143.29

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3693 Stud Run Tee, Male BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3693 08 13 Parker \| 10 \|
Series:	3693 Series
Shape (Orientation):	Tee
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Swivel

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	C	E	F	G	H	H1	J	L	Kg
3693 04 19	4 mm	M5x0.8	3.5 mm	10 mm	10 mm	22.5 mm	18 mm	7 mm	23 mm	.019 Kg
3693 04 10	4 mm	1/8"	4.5 mm	13 mm	10 mm	20.5 mm	18 mm	7 mm	23 mm	.021 Kg
3693 06 10	6 mm	1/8"	4.5 mm	13 mm	12 mm	25 mm	21.5 mm	8 mm	28 mm	.031 Kg
3693 06 13	6 mm	1/4"	5.5 mm	16 mm	12 mm	24.5 mm	21.5 mm	8 mm	28 mm	.035 Kg
3693 08 10	8 mm	1/8"	4.5 mm	14 mm	15 mm	26.5 mm	23.5 mm	10 mm	31 mm	.041 Kg
3693 08 13	8 mm	1/4"	5.5 mm	16 mm	15 mm	26.5 mm	23.5 mm	10 mm	31 mm	.044 Kg
3693 10 13	10 mm	1/4"	5.5 mm	18 mm	17.5 mm	33 mm	29 mm	12 mm	37.5 mm	.066 Kg
3693 12 17	12 mm	3/8"	5.5 mm	20 mm	19.5 mm	36.5 mm	31 mm	15 mm	40.5 mm	.090 Kg
3693 14 21	14 mm	1/2"	7 mm	24 mm	21.5 mm	38.5 mm	34 mm	16 mm	45 mm	.112 Kg

The body swivels for positioning purposes.

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
