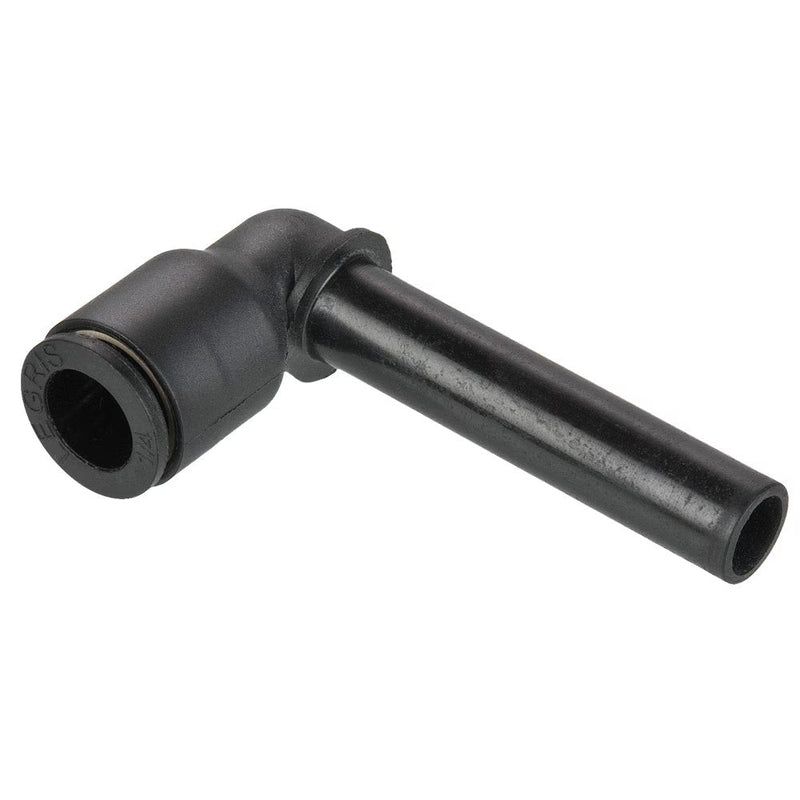

369PLPSPX-8M-10M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 8mm Tube Size x 10mm Tube Stem | 56.0mm Height (H) | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $12.04

$62.71

$62.71 - $62.71

$62.71

$50.67

$50.67 - $50.67

$50.67

by Parker Hannifin
Push-to-Connect Fittings:369PLPSPX Extended Plug-In Elbow

Package Quantity: 10 Units

Specifications for Variant SKU: 369PLPSPX-8M-10M Parker \| 10 \|
Series:	369PLPSPX Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Long, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size 1	Tube Size 2	H	H1	H2	L
369PLPSPX-4M	4 mm	4 mm	32.5 mm	15.5 mm	25.0 mm	14.0
369PLPSPX-6M	6 mm	6 mm	38.5 mm	19.0 mm	29.0 mm	16.0 mm
369PLPSPX-8M	8 mm	8 mm	49.0 mm	23.5 mm	37.0 mm	23.0 mm
369PLPSPX-10M	10 mm	10 mm	56.0 mm	26.5 mm	41.5 mm	26.5 mm
369PLPSPX-12M	12 mm	12 mm	62.5 mm	28.0 mm	45.5 mm	31.0 mm
369PLPSPX-4M-6M	4 mm	6 mm	38.5 mm	19.0 mm	29.0 mm	16.0 mm
369PLPSPX-6M-8M	6 mm	8 mm	49.0 mm	23.5 mm	37.0 mm	23.0 mm
369PLPSPX-8M-10M	8 mm	10 mm	56.0 mm	26.5 mm	41.5 mm	26.5 mm
369PLPSPX-10M-12M	10 mm	12 mm	62.5 mm	28.0 mm	45.5 mm	31.0 mm
