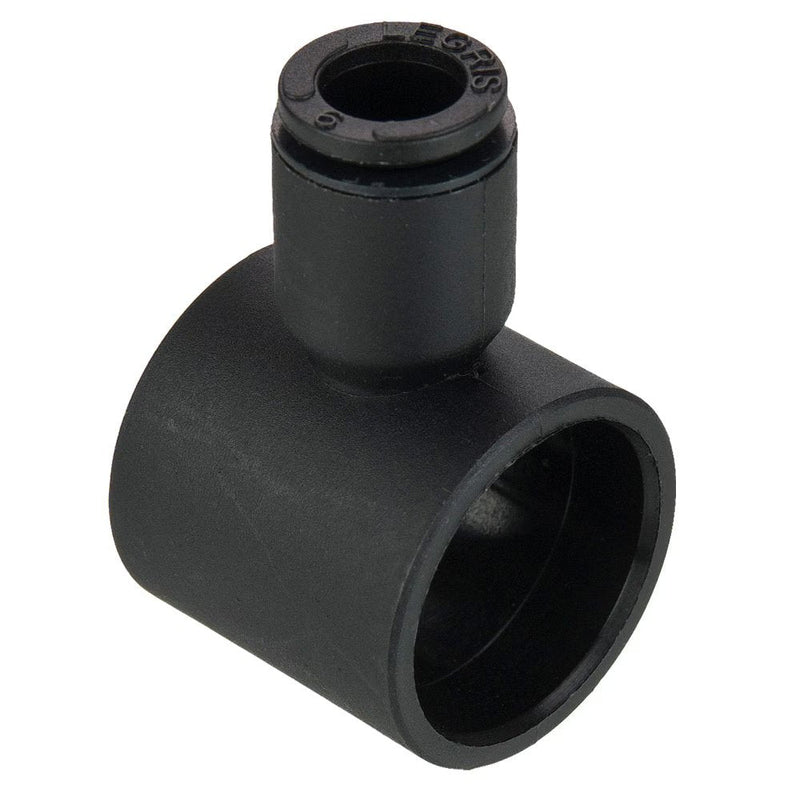

369PLPTJB-4M-4G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 25.0 Length (L) | Glass-Reinforced Nylon | Pack of 10

369PLPTJB-4M-4G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 4mm Tube Size x 1/4" Male BSPP Thread | 25.0 Length (L) | Glass-Reinforced Nylon | Pack of 10

Save $56.77

$141.92

$141.92 - $141.92

$141.92

$85.15

$85.15 - $85.15

$85.15

by Parker Hannifin
Push-to-Connect Fittings:369PLPTJB Twin Banjo Bodies

Package Quantity: 10 Units

Specifications for Variant SKU: 369PLPTJB-4M-4G Parker \| 10 \|
Series:	369PLPTJB Series
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	BSPP / M5	K	L	N
369PLPTJB-4M-4G	4 mm	1/4"	28.0 mm	25.0 mm	14.5 mm
369PLPTJB-6M-2G	6 mm	1/8"	22.5 mm	20.5 mm	12.0 mm
369PLPTJB-6M-4G	6 mm	1/4"	28.0 mm	25.0 mm	14.5 mm
369PLPTJB-6M-6G	6 mm	3/8"	33.0 mm	28.0 mm	17.0 mm
369PLPTJB-8M-4G	8 mm	1/4"	28.0 mm	26.0 mm	14.5 mm
369PLPTJB-8M-6G	8 mm	3/8"	33.0 mm	29.5 mm	17.0 mm
