by Parker Hannifin

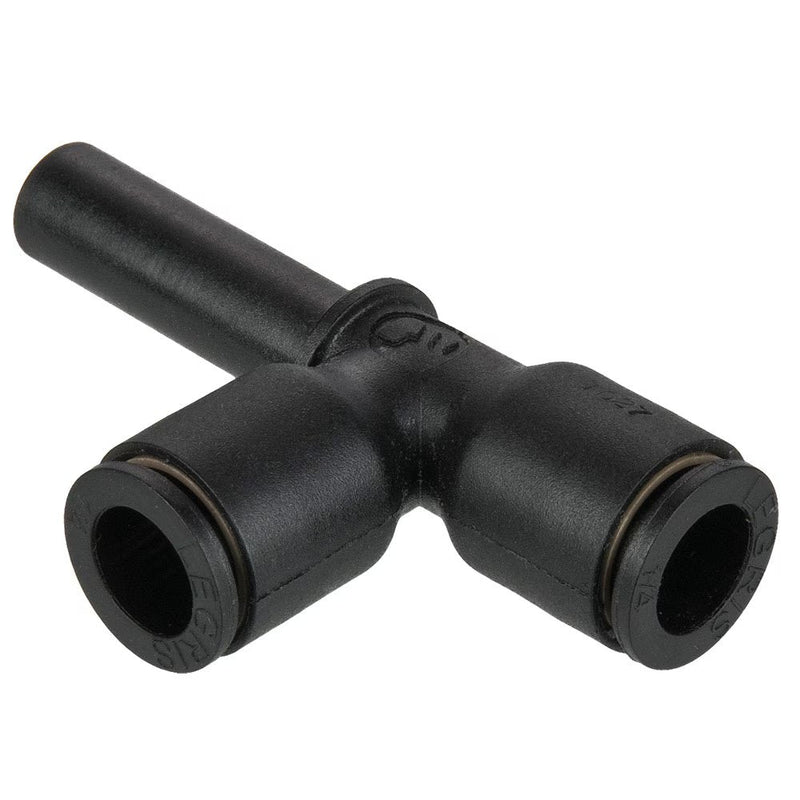

Push-to-Connect Fittings:371PLPSP Plug-In Run Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 371PLPSP-6M Parker \| 10 \|
Series:	371PLPSP Series
Shape (Orientation):	Tee
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size 1	Tube Size 2	H	H1	H2	L
371PLPSP-4M	4 mm	4 mm	33.0 mm	6.0 mm	15.5 mm	14.5 mm
371PLPSP-6M	6 mm	6 mm	38.5 mm	7.0 mm	17.0 mm	17.5 mm
371PLPSP-8M	8 mm	8 mm	49.0 mm	8.0 mm	21.5 mm	23.0 mm
371PLPSP-10M	10 mm	10 mm	57.0 mm	10.5 mm	24.5 mm	26.5 mm
371PLPSP-12M	12 mm	12 mm	65.5 mm	10.5 mm	24.5 mm	26.5 mm
371PLPSP-4M-6M	4 mm	6 mm	10.5 mm	7.0 mm	17.0 mm	17.5 mm
371PLPSP-6M-8M	6 mm	8 mm	13.5 mm	8.0 mm	21.5 mm	26.5 mm
371PLPSP-8M-10M	8 mm	10 mm	16.0 mm	10.5 mm	24.5 mm	26.5 mm
371PLPSP-10M-12M	10 mm	12 mm	19.0 mm	10.5 mm	27.5 mm	31.0 mm
