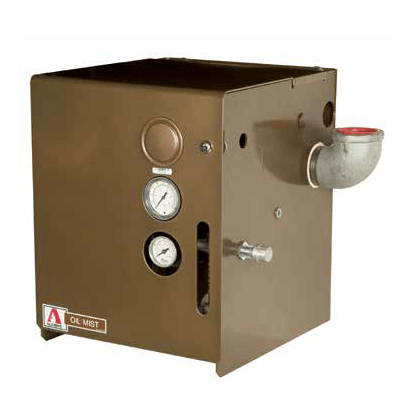

3725-A6 by Alemite | Oil Mist Generator | 2-1/2" Female NPTF | CFM Nominal: 9.7 | Flow Range: 3.5-16.5 CFM | Reservoir Capacity: 3.6 gal/13.6 Liter

Save $133.59

$12,524.55

$12,524.55 - $12,524.55

$12,524.55

$12,390.96

$12,390.96 - $12,390.96

$12,390.96

PRODUCT DESCRIPTION

Alemite Centralized Lubrication - Oil Mist - Oil Mist Generators - 3.6 Gallon

Quantity

Specifications for Variant SKU: 3725-A6 Alemite

Applications:
Alemite Oil Mist Systems are used to service all types of machine elements that require continuous lubrication, such as rolling element bearings and chain drives. Delivering a continuous, measured stream of clean atomized oil, Alemite Oil Mist Systems have no moving parts for long, reliable life. Alemite Oil Mist Systems use less lubricant, making them a very cost effective option for continuous, automatic lubrication.
Features:
NA

Part Number	CFM Nominal	Reservoir Capacity	Flow Range	Mounting Plate	Oil Heater	Oil Level Switch	Filter/ Regulator	Air Solenoid Valve	Air Heater
3725-A6	9.7	3.6 gal/13.6	3.5-16.5 CFM	NA	115 VAC	Yes	Yes	115 VAC	Accessory (385421-5)
3720-A6	13	3.6 gal/13.6	5.2-21 CFM	NA	115 VAC	Yes	Yes	115 VAC	Accessory (385421-5)
3720-B6	13	3.6 gal/13.6	5.2-21 CFM	NA	230 VAC	Yes	Yes	230 VAC	Accessory (385421-5)
3721-A6	21	3.6 gal/13.6	7.5-33 CFM	NA	115 VAC	Yes	Yes	115 VAC	Accessory (385421-5)
3722-A6	41	3.6 gal/13.6	15-45 CFM	NA	115 VAC	Yes	Yes	115 VAC	Accessory (385421-5)
3722-B6	41	3.6 gal/13.6	15-45 CFM	NA	230 VAC	Yes	Yes	230 VAC	Accessory (385421-5)
3726-A6	65	3.6 gal/13.6	31-73 CFM	NA	115 VAC	Yes	Yes	115 VAC	Accessory (385421-5)
3726-B6	65	3.6 gal/13.6	31-73 CFM	NA	230 VAC	Yes	Yes	230 VAC	Accessory (385421-5)
3730-RW6	13	3.6 gal/13.6	5.2-21 CFM	NA	115 VAC	Yes	Yes	115 VAC	230 VAC
3730-BW6	13	3.6 gal/13.6	5.2-21 CFM	NA	230 VAC	Yes	Yes	230 VAC	230 VAC
3731-RW6	21	3.6 gal/13.6	7.5-33 CFM	NA	115 VAC	Yes	Yes	115 VAC	230 VAC
3731-BW6	21	3.6 gal/13.6	7.5-33 CFM	NA	230 VAC	Yes	Yes	230 VAC	230 VAC
3732-RW6	41	3.6 gal/13.6	15-45 CFM	NA	115 VAC	Yes	Yes	115 VAC	230 VAC
3732-BW6	41	3.6 gal/13.6	15-45 CFM	NA	230 VAC	Yes	Yes	230 VAC	230 VAC
3736-RW6	65	3.6 gal/13.6	31-73 CFM	NA	115 VAC	Yes	Yes	115 VAC	230 VAC
3736-BW6	65	3.6 gal/13.6	31-73 CFM	NA	230 VAC	Yes	Yes	230 VAC	230 VAC
