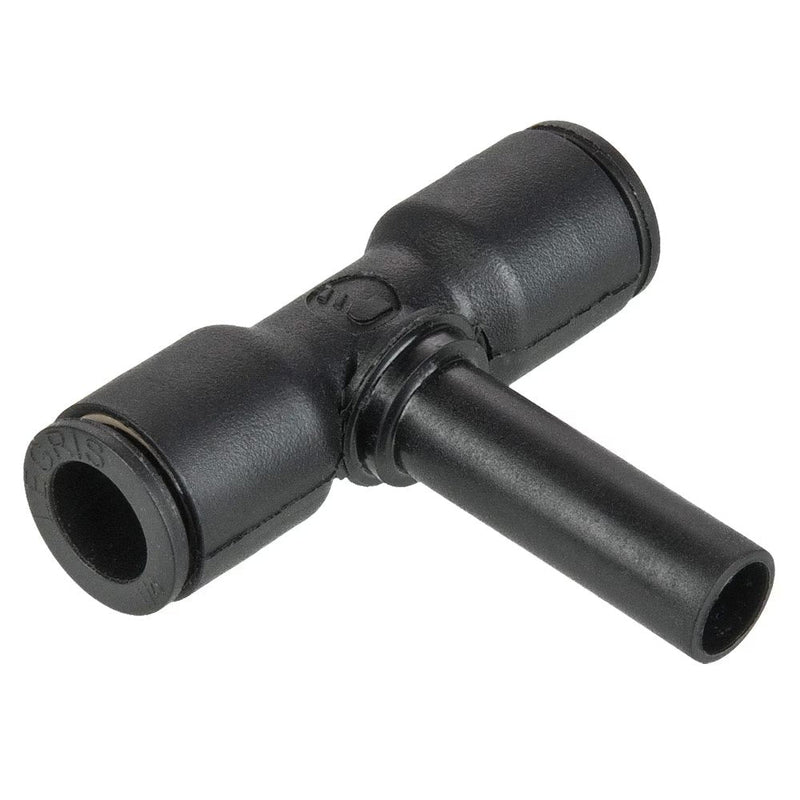

372PLPSP-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 1/4" Tube Size | .98 Height (H) | Tee | Glass-Reinforced Nylon | Pack of 10

Save $10.36

$43.16

$43.16 - $43.16

$43.16

$32.80

$32.80 - $32.80

$32.80

by Parker Hannifin
Push-to-Connect Fittings:372PLPSP Plug-In Branch Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 372PLPSP-4 Parker \| 10 \|
Series:	372PLPSP Series
Shape (Orientation):	Tee
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size 1	Tube Size 2	H	H1	H2	L/2
372PLPSP-2	1/8"	1/8"	.95"	.26"	.59"	.57"
372PLPSP-4	1/4"	1/4"	.98"	.43"	.77"	.73"
372PLPSP-6	3/8"	3/8"	1.61"	.35"	.96"	.98"
372PLPSP-8	1/2"	1/2"	2.01"	.51"	1.12"	1.38"
