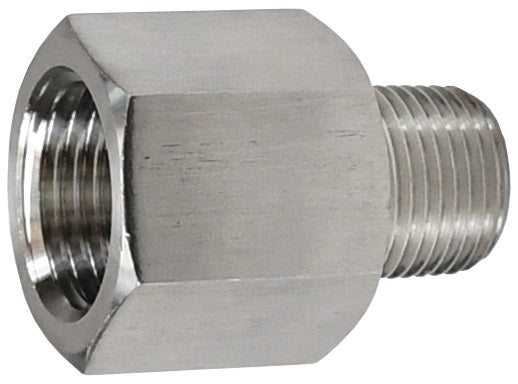

3750402SS by Dixon Valve | Pipe Thread Adapter | 1/4" Female NPT x 1/8" Male NPT | 316 Stainless Steel

3750402SS by Dixon Valve | Pipe Thread Adapter | 1/4" Female NPT x 1/8" Male NPT | 316 Stainless Steel

Save $3.37 Save $3.37
$8.42
$8.42 - $8.42
$8.42
$5.05
$5.05 - $5.05
$5.05

Dixon Valve
Pipe Fitting | Threaded Adapter | Female NPT x Male NPT
Specifications for Variant SKU: 3750402SS Dixon
Series: 375 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPT, 1/8in Male NPT
Material(s): 316 Stainless Steel
Specifications:
  • Ref SAE 130139.
  • Dryseal
Safety Notes:
  • Lead-Free Brass: Conforms To: Safe Water Drinking Act (SWDA) of Jan. 4, 2014; California AB1953; RoHS Compliant. NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745
Brass Lead-Free Brass
Part Number		 316 Stainless Steel
Part Number
(NPT THREADS) 		Female NPTF Male NPTF
Brass
Part Number		 Previous
Part Number
3750202C RA1F1M - - 1/8" 1/8"
3750402C RA2F1M 3750402CLF 3750402SS 1/4" 1/8"
3750404C RA2F2M 3750404CLF 3750404SS 1/4" 1/4"
3750602C RA3F1M - 3750602SS 3/8" 1/8"
3750604C RA3F2M 3750604CLF 3750604SS 3/8" 1/4"
3750606C RA3F3M - 3750606SS 3/8" 3/8"
3750804C RA4F2M - 3750804SS 1/2" 1/4"
3750806C RA4F3M - 3750806SS 1/2" 3/8"
3750808C RA4F4M 3750808CLF 3750808SS 1/2" 1/2"
3751206C RA6F3M - 3751206SS 3/4" 3/8"
3751208C RA6F4M - 3751208SS 3/4" 1/2"
3751212C RA6F6M 3751212CLF 3751212SS 3/4" 3/4"
3751608C - - 3751608SS 1" 1/2"
3751612C - - 3751612SS 1" 3/4"
- - - 3751616SS 1" 1"
