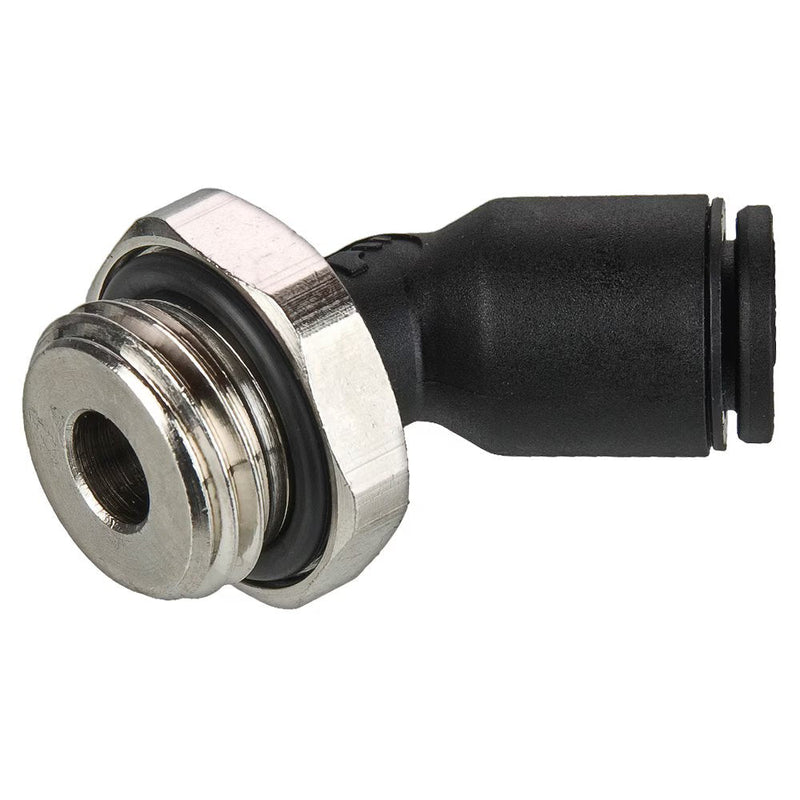

379PLP-12M-4G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 12mm Tube Size x 1/4" Male BSPP Thread | 16mm Hex | 26mm Length (L) | 45° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $71.81

$179.52

$179.52 - $179.52

$179.52

$107.71

$107.71 - $107.71

$107.71

by Parker Hannifin
Push-to-Connect Fittings:379PLP 45° Male Elbow - BSPP

Package Quantity: 10 Units

Specifications for Variant SKU: 379PLP-12M-4G Parker \| 10 \|
Series:	379PLP Series
Shape (Orientation):	45° Elbow
Material(s):	Glass-Reinforced Nylon, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	BSPP / M5	Hex (C)	H	L
379PLP-4M-M5	4 mm	M5X0.8	8 mm	23.0 mm	13.0 mm
379PLP-4M-2G	4 mm	1/8"	13 mm	25.0 mm	13.0 mm
379PLP-6M-M5	6 mm	M5X0.8	8 mm	30.0 mm	14.5 mm
379PLP-6M-2G	6 mm	1/8"	13 mm	28.5 mm	14.5 mm
379PLP-6M-4G	6 mm	1/4"	16 mm	29.5 mm	14.5 mm
379PLP-8M-2G	8 mm	1/8"	13 mm	36.0 mm	19.5 mm
379PLP-8M-4G	8 mm	1/4"	16 mm	34.5 mm	19.5 mm
379PLP-8M-6G	8 mm	3/8"	20 mm	34.5 mm	19.5 mm
379PLP-10M-4G	10 mm	1/4"	16 mm	40.5 mm	23.0 mm
379PLP-10M-6G	10 mm	3/8"	20 mm	39.0 mm	23.0 mm
379PLP-10M-8G	4 mm	1/2"	24 mm	41.0 mm	23.0 mm
379PLP-12M-4G	12 mm	1/4"	16 mm	46.0 mm	26.0 mm
379PLP-12M-6G	12 mm	3/8"	20 mm	44.5 mm	26.0 mm
379PLP-12M-8G	12 mm	1/2"	24 mm	46.0 mm	26.0 mm
