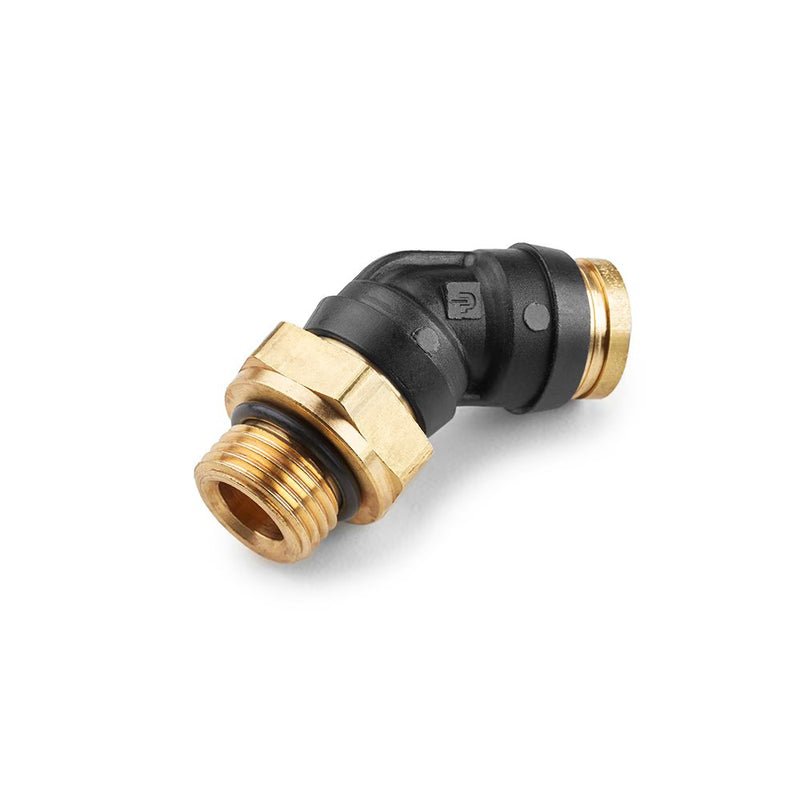

379PTCR-8-MA16 by Parker | Threaded Fitting | 1/2" Rigid Swivel with M16X1.5 Male M16 Threads | 15/16" Hex | 45° Elbow | Composite

379PTCR-8-MA16 by Parker | Threaded Fitting | 1/2" Rigid Swivel with M16X1.5 Male M16 Threads | 15/16" Hex | 45° Elbow | Composite | Pack of 140

Save $2,974.22 Save $2,974.22
$7,435.55
$7,435.55 - $7,435.55
$7,435.55
$4,461.33
$4,461.33 - $4,461.33
$4,461.33

by Parker Hannifin
PTC & PTCR Composite Fittings:Male Elbow Swivel 45° Metric Straight Thread 379PTCR

Package Quantity: 140 Units

Specifications for Variant SKU: 379PTCR-8-MA16 Parker | 140 |
Series: 379PTCR Series
Shape (Orientation): 45° Elbow
Material(s): Composite, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Product Features:
  • Brass Collet
  • HNBR O-ring
  • Stainless Steel Tube Support or Brass
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Composite Body – Strong, Lightweight, Compact and Impact Resistant
  • Plug-in configurations
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Thread* Hex (B) L M
379PTCR-4-MA12 1/4" M12x1.5 1-1/16" .68" 1.05"
379PTCR-4-MA16 1/4" M16x1.5 7/8" .68" 1.07"
379PTCR-4-MA22 1/4" M22x1.5 1-1/16" .68" 1.19"
379PTCR-6-MA12 3/8" M12x1.5 3/4" .89" 1.09"
379PTCR-6-MA16 3/8" M16x1.5 7/8" .89" 1.16"
379PTCR-6-MA22 3/8" M22x1.5 1-1/16" .89" 1.16"
379PTCR-8-MA12 1/2" M12x1.5 15/16" 1.03" 1.21"
379PTCR-8-MA16 1/2" M12x1.5 15/16" 1.03" 1.21"
379PTCR-8-MA22 1/2" M22x1.5 1-1/16" 1.03" 1.21"
379PTCR-10-MA12 5/8" M12x1.5 1-1/16" 1.21" 1.45"
379PTCR-10-MA16 5/8" M16x1.5 1-1/16" 1.21" 1.40"
379PTCR-10-MA22 5/8" M22x1.5 1-1/16" 1.21" 1.40"

*Per ISO 4039
