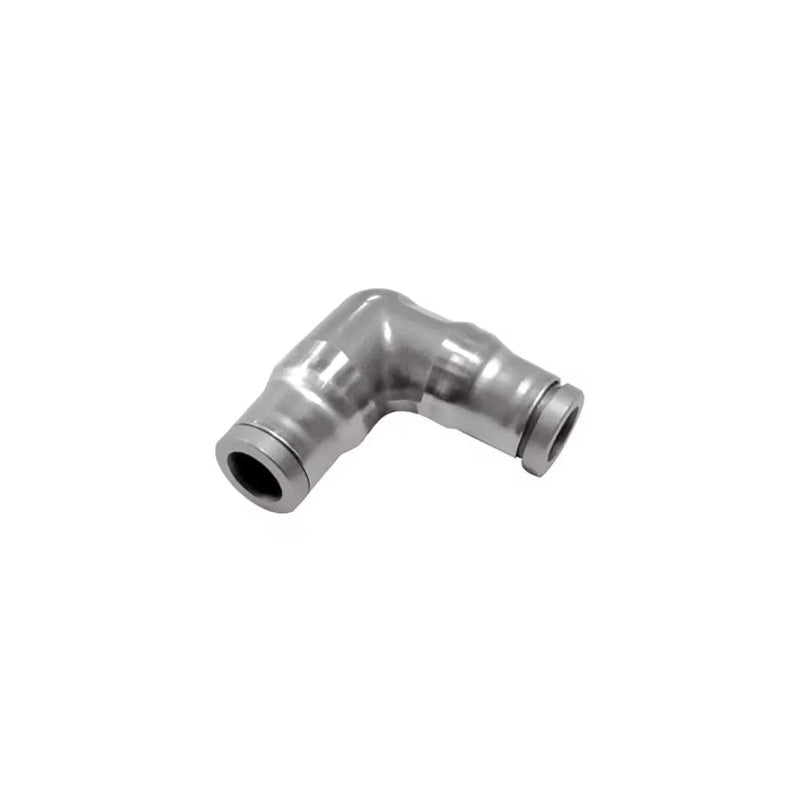

3802 08 00 by Parker | Legris Tube-to-Tube Fitting | 8 mm Tube Size | 29.5 mm Length | 90° Elbow | 316L Stainless Steel | Pack of 2

Save $20.66

$161.01

$161.01 - $161.01

$161.01

$140.35

$140.35 - $140.35

$140.35

by Parker Hannifin
LF 3800 Push-In Fittings / Tube-to-Tube Fittings:3802 Equal Elbow

Package Quantity: 2 Units

Specifications for Variant SKU: 3802 08 00 Parker \| 2 \|
Series:	3802 Series
Shape (Orientation):	90° Elbow
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD	C	L	Kg
3802 04 00	4 mm	10 mm	21.5 mm	.015 Kg
3802 06 00	6 mm	12 mm	26.5 mm	.024 Kg
3802 08 00	8 mm	15 mm	29.5 mm	.031 Kg
3802 10 00	10 mm	17.5 mm	36.5 mm	.050 Kg
3802 12 00	12 mm	20 mm	40 mm	.071 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
