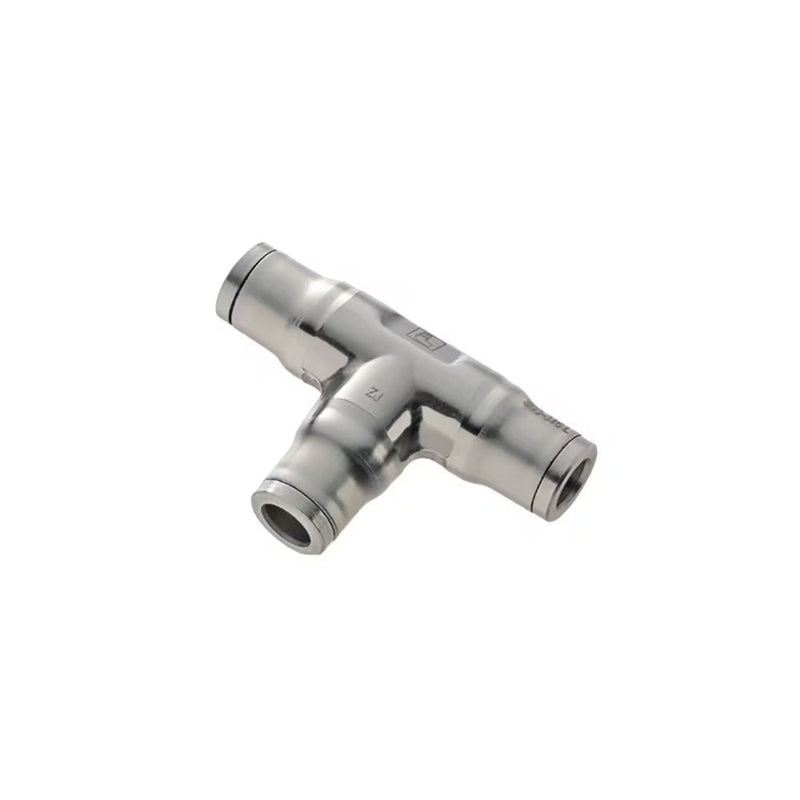

3804 60 00 by Parker | Legris Tube-to-Tube Fitting | 3/8" Tube Size | 58 mm Length | Tee | 316L Stainless Steel | Pack of 5

Save $542.58

$1,356.45

$1,356.45 - $1,356.45

$1,356.45

$813.87

$813.87 - $813.87

$813.87

by Parker Hannifin
LF 3800 Push-In Fittings / Tube-to-Tube Fittings:3804 Equal Tee

Package Quantity: 5 Units

Specifications for Variant SKU: 3804 60 00 Parker \| 5 \|
Series:	3804 Series
Shape (Orientation):	Tee
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD	G	H	L/2	Kg
3804 56 00	1/4"	12 mm	30 mm	23 mm	.031 Kg
3804 60 00	3/8"	17 mm	38 mm	29 mm	.059 Kg
3804 62 00	1/2"	20 mm	43 mm	33 mm	.088 Kg
