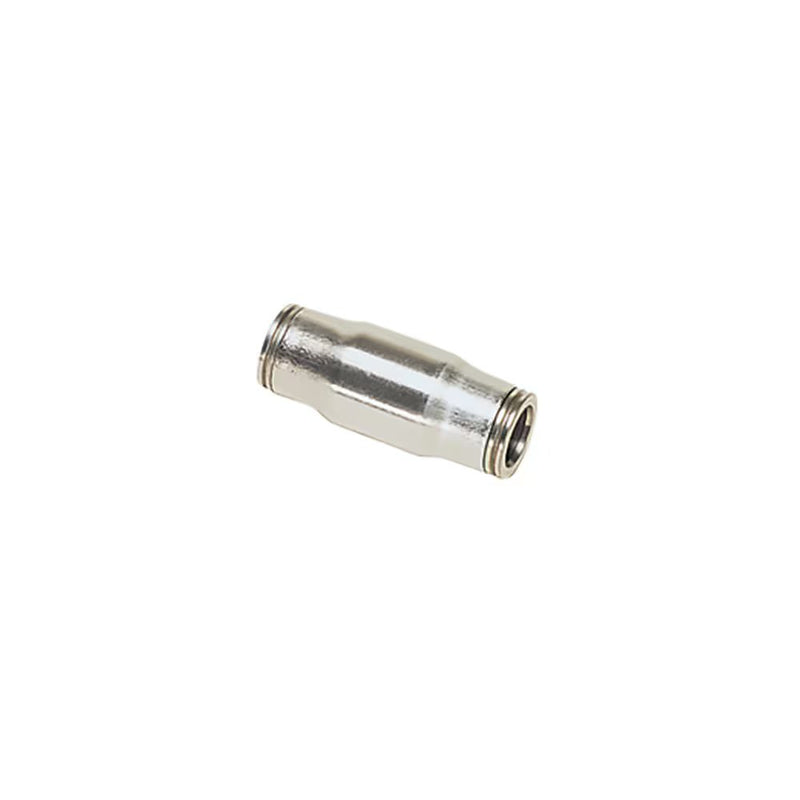

3806 10 00 by Parker | Legris Tube-to-Tube Fitting | 10 mm Tube Size | 45 mm Length | Straight | 316L Stainless Steel | Pack of 2

Save $28.09

$232.57

$232.57 - $232.57

$232.57

$204.48

$204.48 - $204.48

$204.48

by Parker Hannifin
LF 3800 Push-In Fittings / Tube-to-Tube Fittings:3806 Equal Tube-to-Tube Connector

Package Quantity: 2 Units

Specifications for Variant SKU: 3806 10 00 Parker \| 2 \|
Series:	3806 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD	C	L	Kg
3806 04 00	4 mm	10 mm	29 mm	.009 Kg
3806 06 00	6 mm	12 mm	34 mm	.015 Kg
3806 08 00	8 mm	15 mm	36 mm	.019 Kg
3806 10 00	10 mm	17.5 mm	45 mm	.032 Kg
3806 12 00	12 mm	20 mm	46.5 mm	.040 Kg
