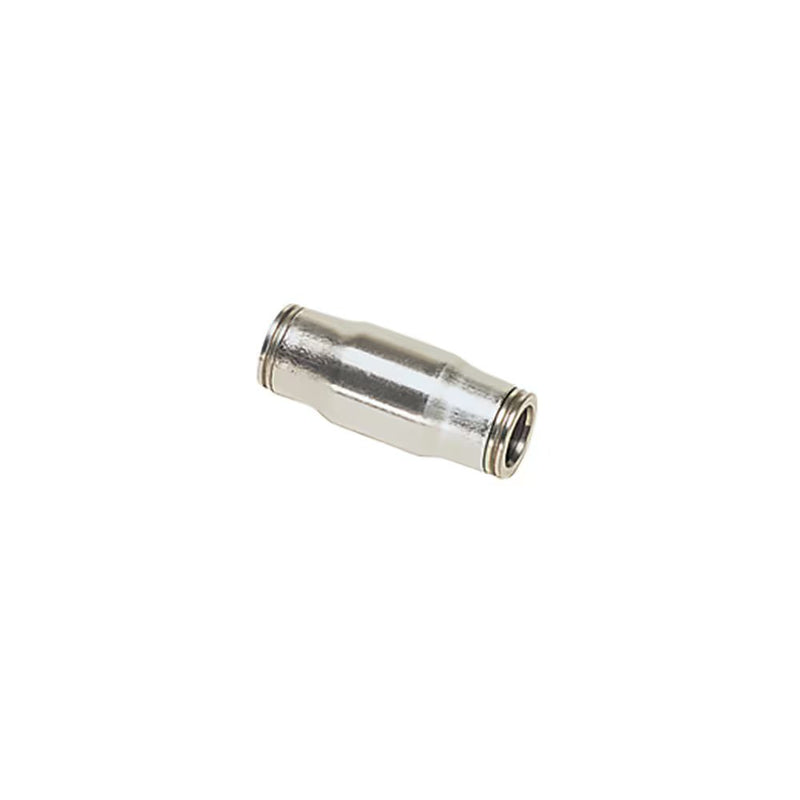

3806 62 00 by Parker | Legris Tube-to-Tube Fitting | 1/2" Tube Size | 48 mm Length | Straight | 316L Stainless Steel | Pack of 5

Save $364.89

$912.22

$912.22 - $912.22

$912.22

$547.33

$547.33 - $547.33

$547.33

by Parker Hannifin
LF 3800 Push-In Fittings / Tube-to-Tube Fittings:3806 Equal Tube-to-Tube Connector

Package Quantity: 5 Units

Specifications for Variant SKU: 3806 62 00 Parker \| 5 \|
Series:	3806 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD	C	L	Kg
3806 55 00	3/16"	11 mm	31 mm	.010 Kg
3806 56 00	1/4"	12 mm	36 mm	.015 Kg
3806 60 00	3/8"	17 mm	47 mm	.030 Kg
3806 62 00	1/2"	20 mm	48 mm	.039 Kg
