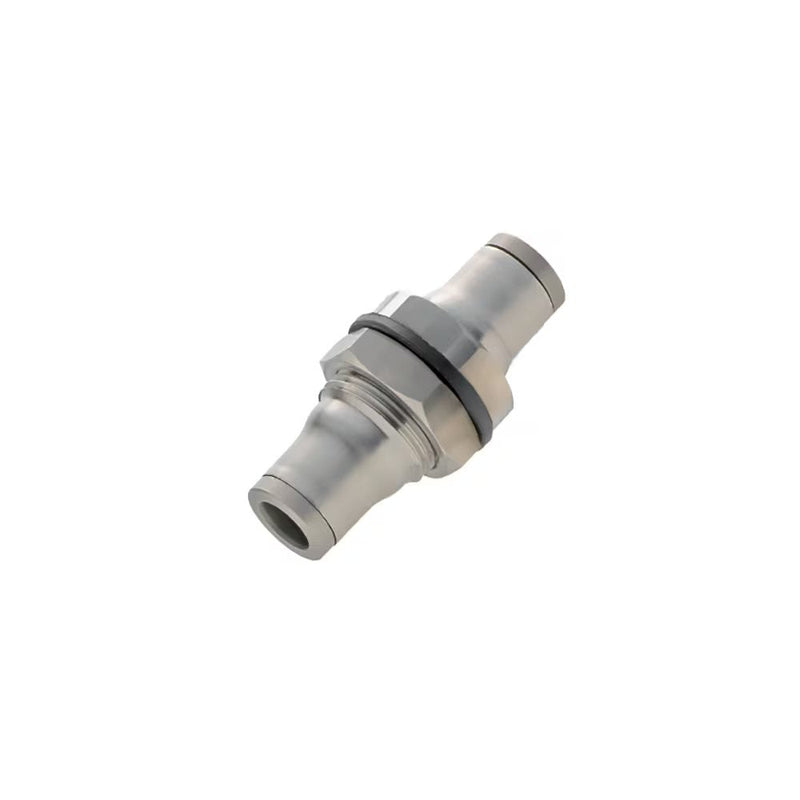

3816 06 00 by Parker | Legris Bulkhead Connector | 6 mm Tube Size | 38 mm Length | Straight | 316L Stainless Steel | Pack of 2

Save $19.70

$151.86

$151.86 - $151.86

$151.86

$132.16

$132.16 - $132.16

$132.16

by Parker Hannifin
LF 3800 Push-In Fittings / Bulkhead Fittings:3816 Equal Bulkhead Connector

Package Quantity: 2 Units

Specifications for Variant SKU: 3816 06 00 Parker \| 2 \|
Series:	3816 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD	F	F1	L1	L2	ØT	Kg
3816 04 00	4 mm	13 mm	14 mm	13.5 mm	19.5 mm	13 mm	.017 Kg
3816 06 00	6 mm	17 mm	17 mm	16.5 mm	21.5 mm	14 mm	.027 Kg
3816 08 00	8 mm	19 mm	19 mm	18 mm	24 mm	16 mm	.034 Kg
3816 10 00	10 mm	22 mm	22 mm	21.5 mm	27.5 mm	21 mm	.048 Kg
3816 12 00	12 mm	24 mm	24 mm	24 mm	29 mm	23 mm	.059 Kg

IP55 sealing
