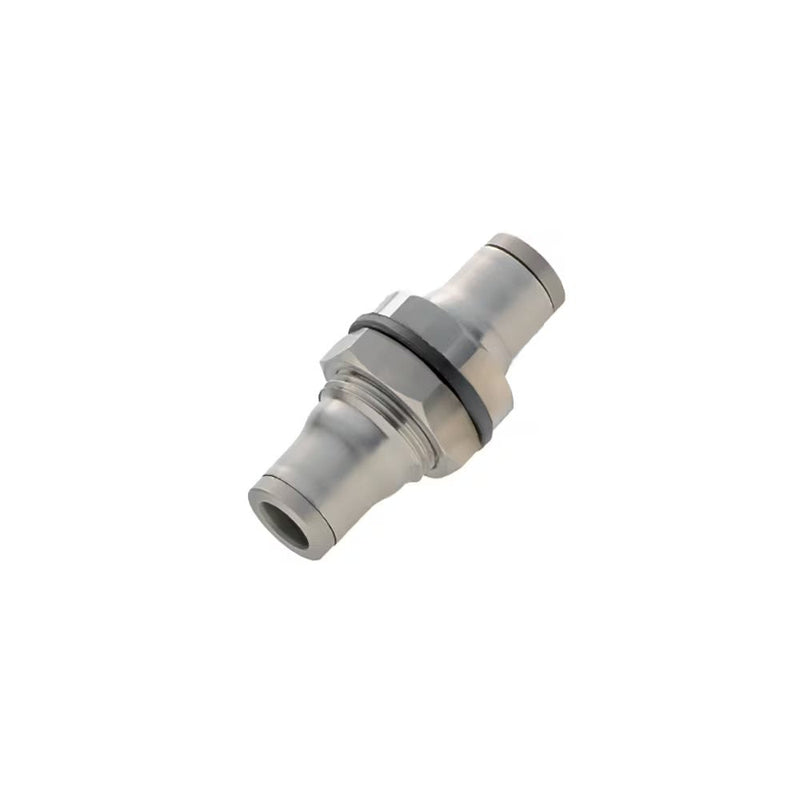

3816 56 00 by Parker | Legris Bulkhead Connector | 1/4" Tube Size | 37 mm Length | Straight | 316L Stainless Steel | Pack of 5

Save $420.71

$1,051.78

$1,051.78 - $1,051.78

$1,051.78

$631.07

$631.07 - $631.07

$631.07

by Parker Hannifin
LF 3800 Push-In Fittings / Bulkhead Fittings:3816 Equal Bulkhead Connector

Package Quantity: 5 Units

Specifications for Variant SKU: 3816 56 00 Parker \| 5 \|
Series:	3816 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD	F	F1	L1	L2	ØT	Kg
3816 56 00	1/4"	19 mm	17 mm	19 mm	21 mm	15 mm	.027 Kg
3816 60 00	3/8"	22 mm	22 mm	22 mm	27 mm	21 mm	.052 Kg
3816 62 00	1/2"	27 mm	27 mm	25 mm	28 mm	25 mm	.076 Kg

IP55 sealing
