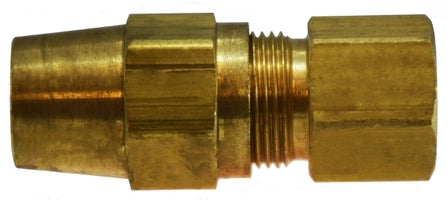

38205 by Midland | DOT Air Brake Fitting (Copper Tubing) | Female Adapter | 1/4" Tube OD x 1/4" Female NPTF | Straight | Brass

Save $3.30

$8.25

$8.25 - $8.25

$8.25

$4.95

$4.95 - $4.95

$4.95

Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Copper Tubing) - Female Adapter - Brass

Specifications for Variant SKU: 38205 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Push-to-Connect, 1/4in Female NPTF
Material(s):	Brass
Applicable Specs & Approvals:	D.O.T. FMVSS 571.106, SAE

SAE Rating:	SAE# 120103BA	Tolerance:	+/- .02 on all dimensions

Crossover Series:
66AB	AB66	1366


Part Number	Tube OD x Female NPTF	A	Hex	Approx. Weight (Lbs.)
38204	1/4" x 1/8"	0.84"	0.56"	0.08
38205	1/4" x 1/4"	1.07"	0.68"	0.10
38206	3/8" x 1/8"	1.00"	0.56"	0.10
38207 (38-207)	3/8" x 1/4"	1.19"	0.68"	0.12
38208 (38-208)	3/8" x 3/8"	1.18"	0.87"	0.16
38209 (38-209)	1/2" x 3/8"	1.27"	0.87"	0.18
38210	1/2" x 1/2"	1.44"	1.06"	0.20
38211	5/8" x 3/8"	1.31"	0.87"	0.24
38212	5/8" x 1/2"	0.50"	1.06"	0.26
38213	3/4" x 1/2"	-	-	-

Dimension data can change without notice.
