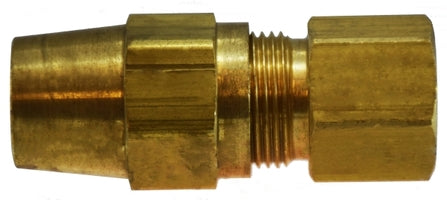

38207 (38-207) by Midland | DOT Air Brake Fitting (Copper Tubing) | Female Adapter | 3/8" Tube OD x 1/4" Female NPTF | Straight | Brass

Save $2.19

$5.47

$5.47 - $5.47

$5.47

$3.28

$3.28 - $3.28

$3.28

Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Copper Tubing) - Female Adapter - Brass

Inventory @ Manufacturers Warehouse: 43 Units

Specifications for Variant SKU: 38207 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/8in Push-to-Connect, 1/4in Female NPTF
Material(s):	Brass
Applicable Specs & Approvals:	D.O.T. FMVSS 571.106, SAE

SAE Rating:	SAE# 120103BA	Tolerance:	+/- .02 on all dimensions

Crossover Series:
66AB	AB66	1366


Part Number	Tube OD x Female NPTF	A	Hex	Approx. Weight (Lbs.)
38204	1/4" x 1/8"	0.84"	0.56"	0.08
38205	1/4" x 1/4"	1.07"	0.68"	0.10
38206	3/8" x 1/8"	1.00"	0.56"	0.10
38207 (38-207)	3/8" x 1/4"	1.19"	0.68"	0.12
38208 (38-208)	3/8" x 3/8"	1.18"	0.87"	0.16
38209 (38-209)	1/2" x 3/8"	1.27"	0.87"	0.18
38210	1/2" x 1/2"	1.44"	1.06"	0.20
38211	5/8" x 3/8"	1.31"	0.87"	0.24
38212	5/8" x 1/2"	0.50"	1.06"	0.26
38213	3/4" x 1/2"	-	-	-

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
