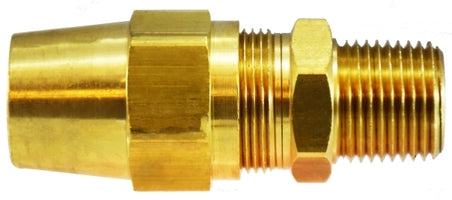

38217 (38-217) Midland DOT Air Brake Fitting (Copper Tubing) - Male Adapter - 1/4" Tube OD x 1/8" Male NPTF - Brass

38217 by Midland | DOT Air Brake Fitting | Copper Tubing | 1/4" Tube OD x 1/8" Male NPTF | Adapter | Brass

Save $1.32

$3.30

$3.30 - $3.30

$3.30

$1.98

$1.98 - $1.98

$1.98

Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Copper Tubing) - Male Adapter - Brass

Inventory @ Manufacturers Warehouse: 198 Units

Specifications for Variant SKU: 38217 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Tube Compression, 1/8in Male NPTF
Material(s):	Brass
Applicable Specs & Approvals:	Applicable D.O.T. Requirements, D.O.T. FMVSS 49 571.106, Applicable SAE Standards

SAE Rating:	SAE# 120102BA	Tolerance:	+/- .02 on all dimensions

Crossover Series:
68AB	AB68	368


Part Number	Tube OD x Male NPTF	A	Hex	Approx. Weight (Lbs.)
38217 (38-217)	1/4" x 1/8"	0.88"	0.43"	0.06
38218 (38-218)	1/4" x 1/4"	0.97"	0.56"	0.08
38221 (38-221)	3/8" x 1/4"	1.09"	0.56"	0.10
38222 (38-222)	3/8" x 3/8"	1.19"	0.69"	0.12
38223 (38-223)	3/8" x 1/2"	1.45"	0.87"	0.18
38224 (38-224)	1/2" x 1/4"	1.32"	0.69"	0.16
38225 (38-225)	1/2" x 3/8"	1.35"	0.69"	0.18
38226 (38-226)	1/2" x 1/2"	1.51"	0.87"	0.24
38227 (38-227)	5/8" x 3/8"	1.39"	0.81"	0.22
38228 (38-228)	5/8" x 1/2"	1.57"	0.87"	0.24
38229 (38-229)	3/4" x 1/2"	1.67"	1.00"	0.34

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
