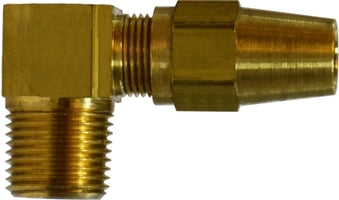

38235 (38-235) Midland DOT Air Brake Fitting (Copper Tubing) - Male 90° Elbow - 1/4" Tube OD x 1/8" Male NPTF - Brass

38235 by Midland | DOT Air Brake Fitting | Copper Tubing | 1/4" Tube OD x 1/8" Male NPTF | 90° Elbow | Brass

Save $2.34

$5.85

$5.85 - $5.85

$5.85

$3.51

$3.51 - $3.51

$3.51

Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Copper Tubing) - Male 90° Elbow - Brass

Inventory @ Manufacturers Warehouse: 25 Units

Specifications for Variant SKU: 38235 Midland
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Tube Compression, 1/8in Male NPTF
Material(s):	Brass
Applicable Specs & Approvals:	Applicable D.O.T. Requirements, D.O.T. FMVSS 49 571.106, Applicable SAE Standards

SPECIFICATIONS

SAE Rating:	SAE# 120202BA	Tolerance:	+/- .02 on all dimensions

Crossover Series:
69AB	AB69	269AB	1369


Part Number	Tube OD x Male NPTF	A	B	Approx. Weight (Lbs.)
38235 (38-235)	1/4" x 1/8"	0.64"	0.76"	0.08
38236 (38-236)	1/4" x 1/4"	0.69"	0.88"	0.10
38237 (38-237)	1/4" x 3/8"	0.73"	0.86"	0.14
38239 (38-239)	3/8" x 1/4"	0.80"	0.93"	0.12
38240 (38-240)	3/8" x 3/8"	0.83"	0.90"	0.16
38241	3/8" x 1/2"	-	-	0.22
38243 (38-243)	1/2" x 3/8"	0.92"	0.98"	0.22
38244 (38-244)	1/2" x 1/2"	1.04"	1.19"	0.30
38246 (38-246)	5/8" x 1/2"	1.10"	1.25"	0.36

Dimension data can change without notice.
