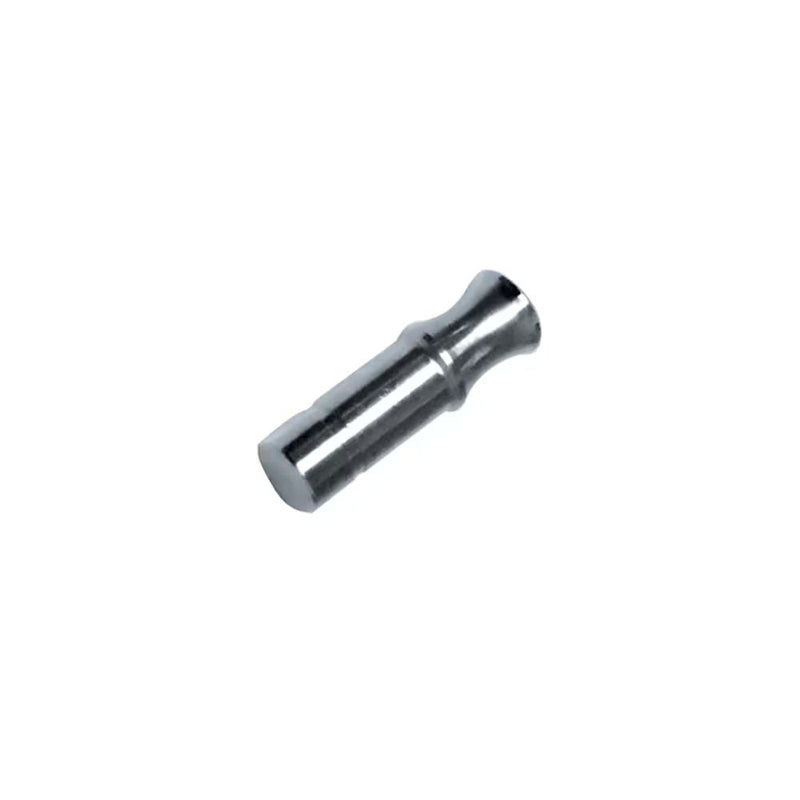

3826 06 00 by Parker | Legris Blanking Plug | 6mm Tube Size x 8mm Tube Size | 30.4mm Length | 316L Stainless Steel | Pack of 5

Save $78.85

$197.12

$197.12 - $197.12

$197.12

$118.27

$118.27 - $118.27

$118.27

by Parker Hannifin
LF 3800 Push-In Fittings:3826 Blanking Plug

Package Quantity: 5 Units

Specifications for Variant SKU: 3826 06 00 Parker \| 5 \|
Series:	3826 Series
Shape (Orientation):	No Orientation
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD1	ØD2	L	L1	L2	Kg
3826 04 00	4 mm	6 mm	25 mm	17 mm	11 mm	.003 Kg
3826 06 00	6 mm	8 mm	30.4 mm	19.5 mm	13.5 mm	.007 Kg
3826 08 00	8 mm	10 mm	33 mm	20 mm	14 mm	.014 Kg
3826 10 00	10 mm	12 mm	10 mm	25 mm	17 mm	.025 Kg
3826 12 00	12 mm	14 mm	43 mm	26 mm	19 mm	.038 Kg
