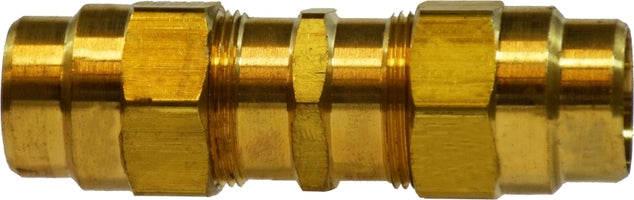

38319 (38-319) Midland DOT Air Brake Reusable Hose Fitting - Union - 1/2" Hose ID - 1-1/8-20 Thread - Brass

38319 by Midland | DOT Air Brake Reusable Hose Fitting | Union | 1/2" Hose ID | 1-1/8-20 Thread | Brass

Save $11.75

$29.38

$29.38 - $29.38

$29.38

$17.63

$17.63 - $17.63

$17.63

Midland Industries
Brass Fitting - D.O.T. Air Brake Reusable Hose Fitting - Union - Brass

Inventory @ Manufacturers Warehouse: 1186 Units

Specifications for Variant SKU: 38319 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/2in Reusable Hose End, 1/2in Reusable Hose End, Some Ends Match
Material(s):	Brass
Applicable Specs & Approvals:	Applicable D.O.T. Requirements, Applicable SAE Standards

SPECIFICATIONS

Applications:	Air Brake hose connections.	Advantages:	Can be used for nearly any brake line. Easy to assemble with a good selection of hose end configurations. Brass material offers excellent resistance against corrosion.
SAE Rating:	N/A	Conformance:	Meets SAE & DOT specifications (FMVCS 10 GAL)
Pressure:	Determined by maximum working pressure for hose size. Up to 125 psi	Temperature Range:	-40°F to + 120°F ( -40°C to +48°C )
Tolerance:	+/- .02 on all dimensions.

Assembly Instructions:
1) Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward fitting. 2) Push hose into fitting until it bottoms. 3) Screw nut until contact is made with body hex. NOTE: When reassembling fitting, body and nut should be inspected. Only reuse if in proper condition. Sleeves should never be reused.

Crossover Series:
62HE	HE62	#62HC	3380B-Y0	362

Part Number	Hose I.D. Size	Approx. Weight (Lbs.)
38318 (38-318)	3/8"	31/32-20	0.32
38319 (38-319)	1/2"	1-1/8-20	0.48

Dimension Data can change without notice.
