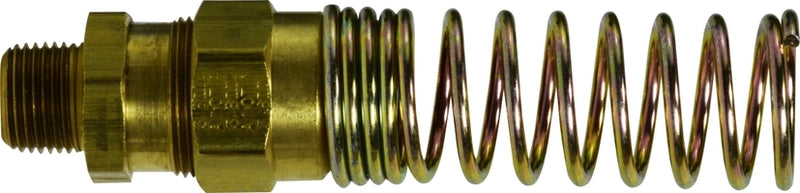

38346 (38-346) Midland DOT Air Brake Reusable Hose Fitting - Male Adapter with Spring - 1/2" Hose ID x 1/2" Male Pipe - Brass

38346 by Midland | DOT Air Brake Reusable Hose Fitting | Male with Spring | 1/2" Hose ID x 1/2" Male Pipe | Adapter | Brass

Save $8.43

$21.08

$21.08 - $21.08

$21.08

$12.65

$12.65 - $12.65

$12.65

Midland Industries
Brass Fitting - D.O.T. Air Brake Reusable Hose Fitting - Male Adapter with Spring - Brass

Inventory @ Manufacturers Warehouse: 932 Units

Specifications for Variant SKU: 38346 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/2in Reusable Hose End, 1/2in Male NPT
Material(s):	Brass
Applicable Specs & Approvals:	Applicable D.O.T. Requirements, Applicable SAE Standards

SPECIFICATIONS

Applications:	Air Brake hose connections.	Advantages:	Can be used for nearly any brake line. Easy to assemble with a good selection of hose end configurations. Brass material offers excellent resistance against corrosion.
SAE Rating:	N/A	Conformance:	Meets SAE & DOT specifications (FMVCS 10 GAL)
Pressure:	Determined by maximum working pressure for hose size. Up to 125 psi	Temperature Range:	-40°F to + 120°F ( -40°C to +48°C )
Tolerance:	+/- .02 on all dimensions.

Assembly Instructions:
1) Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward fitting. 2) Push hose into fitting until it bottoms. 3) Screw nut until contact is made with body hex. NOTE: When reassembling fitting, body and nut should be inspected. Only reuse if in proper condition. Sleeves should never be reused.

Crossover Series:
68HES	HE68G	#68HCS	3380B-Y3	68RBSG	378

Part Number	Hose ID x Male Pipe	Approx. Weight (Lbs.)
38342 (38-342)	3/8" x 1/4"	0.32
38343 (38-343)	3/8" x 3/8"	0.34
38344 (38-344)	3/8" x 1/2"	0.38
38345 (38-345)	1/2" x 3/8"	0.48
38346 (38-346)	1/2" x 1/2"	0.52

Dimension Data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
