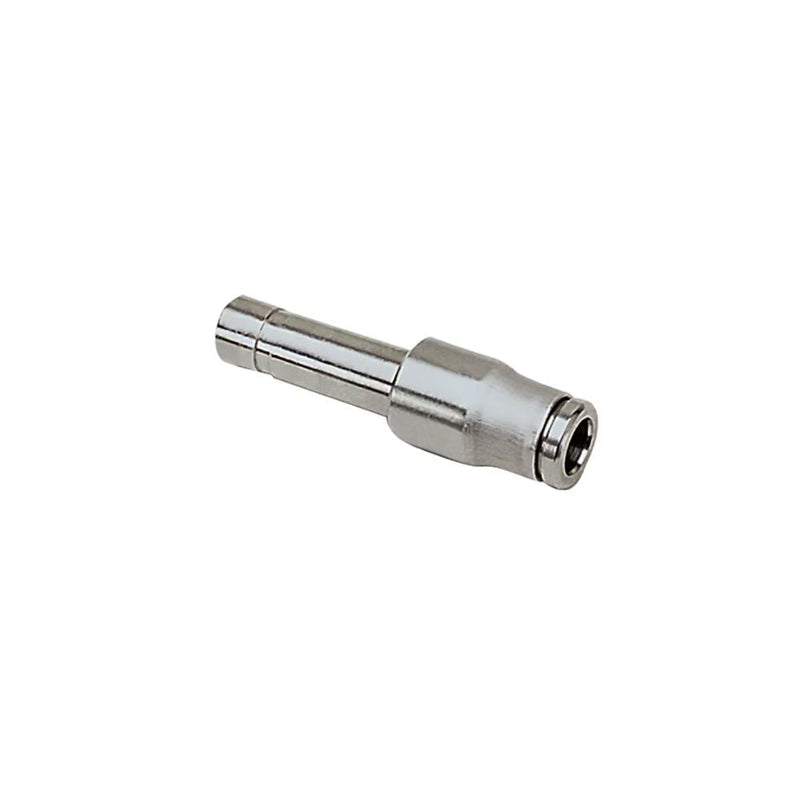

3866 04 06 by Parker | Legris Push-In Reducer | 4 mm Tube Size x 6 mm Tube Size | 35 mm Length | 316L Stainless Steel | Pack of 5

Save $109.38

$273.45

$273.45 - $273.45

$273.45

$164.07

$164.07 - $164.07

$164.07

by Parker Hannifin
LF 3800 Push-In Fittings:3866 Push-In Reducer

Package Quantity: 5 Units

Specifications for Variant SKU: 3866 04 06 Parker \| 5 \|
Series:	3866 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD1	ØD2	G	L	L1	L2	L3	Kg
3866 04 06	4 mm	6 mm	10 mm	35 mm	19 mm	19 mm	16 mm	.008 Kg
3866 04 08	6 mm	8 mm	10 mm	34 mm	17 mm	20 mm	14 mm	.011 Kg
3866 06 08	6 mm	8 mm	12 mm	42 mm	24 mm	23 mm	19 mm	.015 Kg
3866 06 10	6 mm	10 mm	12 mm	41 mm	19 mm	25 mm	16 mm	.019 Kg
3866 08 10	8 mm	10 mm	15 mm	45 mm	22.5 mm	25 mm	20 mm	.021 Kg
3866 08 12	8 mm	12 mm	15 mm	43 mm	20 mm	26 mm	17 mm	.025 Kg
3866 10 12	10 mm	12 mm	17 mm	50 mm	23 mm	26 mm	24 mm	.029 Kg
