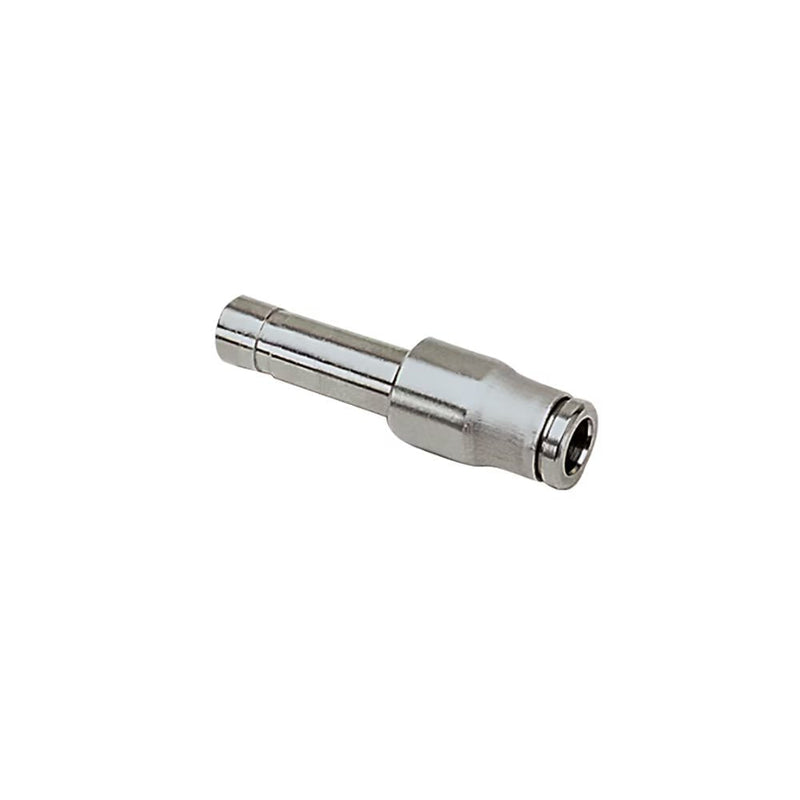

3866 08 10 by Parker | Legris Push-In Reducer | 8 mm Tube Size x 10 mm Tube Size | 45 mm Length | 316L Stainless Steel

3866 08 10 by Parker | Legris Push-In Reducer | 8 mm Tube Size x 10 mm Tube Size | 45 mm Length | 316L Stainless Steel | Pack of 2

$71.95 - $71.95
$71.95
$92.29
$92.29 - $92.29
$92.29

by Parker Hannifin
LF 3800 Push-In Fittings:3866 Push-In Reducer

Package Quantity: 2 Units

Specifications for Variant SKU: 3866 08 10 Parker | 2 |
Series: 3866 Series
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): FKM
Special Properties: Food Grade, Silicone Free, Corrosion Resistance
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD1 ØD2 G L L1 L2 L3 Kg
3866 04 06 4 mm 6 mm 10 mm 35 mm 19 mm 19 mm 16 mm .008 Kg
3866 04 08 6 mm 8 mm 10 mm 34 mm 17 mm 20 mm 14 mm .011 Kg
3866 06 08 6 mm 8 mm 12 mm 42 mm 24 mm 23 mm 19 mm .015 Kg
3866 06 10 6 mm 10 mm 12 mm 41 mm 19 mm 25 mm 16 mm .019 Kg
3866 08 10 8 mm 10 mm 15 mm 45 mm 22.5 mm 25 mm 20 mm .021 Kg
3866 08 12 8 mm 12 mm 15 mm 43 mm 20 mm 26 mm 17 mm .025 Kg
3866 10 12 10 mm 12 mm 17 mm 50 mm 23 mm 26 mm 24 mm .029 Kg
