38769 (38-769) Midland Split Sleeve DOT Fitting - Connector with Nut and Sleeve - 5/32" Tube OD x 1/16" Pipe Thread - Brass

38769 by Midland | Split Sleeve DOT Fitting | Connector with Nut and Sleeve | 5/32" Tube OD x 1/16" Pipe Thread | Brass

Name: 38769 by Midland | Split Sleeve DOT Fitting | Connector with Nut and Sleeve | 5/32" Tube OD x 1/16" Pipe Thread | Brass
Brand: Midland Industries
SKU: 38769 Midland
Price: 5.97 USD
Availability: InStock

Save $0.75

$6.72

$6.72 - $6.72

$6.72

$5.97

$5.97 - $5.97

$5.97

Midland Industries
Brass Fitting - Split Sleeve D.O.T. Fitting - Connector with Nut and Sleeve - Brass

Transmission Brass Fitting

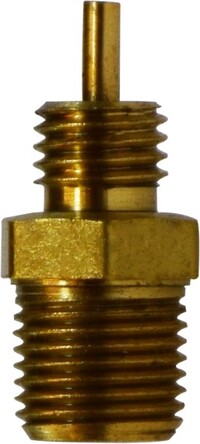

Shipped with nut and split sleeve, picture shows insert

Inventory @ Manufacturers Warehouse: 670 Units

Quantity

Specifications for Variant SKU: 38769 Midland
Shape (Orientation):	Straight
Ends Configuration:	5/32in Tube Compression, 1/16in Male NPT
Material(s):	Brass
Applicable Specs & Approvals:	Applicable D.O.T. Requirements

SPECIFICATIONS

Applications:	Ideally suited for use in passive protected air transmission applications. A specially designed slotted sleeve helps eliminate notch stress related to over torque.	Used With:	Used with SAE J844 Type A nylon tube in pressure protected air transmission applications.
SAE Rating:	SAE J844	Conformance:	N/A
Vibration:	Withstands variations from -40°F to +220°F (-40°C to + 104°C)	Temperature Range:	-40°F to +220°F (-40°C to + 104°C)
Lead Free:	These are NOT Lead Free	Tolerance:	N/A

Features:

Maximum working pressure up to 150 PSI.

Crossover Series:
1468	90794	282	90985

Part Number	Tube O.D	Pipe Thread
38769 (38-769)	5/32"	1/16"
38770 (38-770)	5/32"	1/8"
25175 (25-175)	1/8"	1/16"
25176 (25-176)	1/8"	1/8"

NOTE: 25 prefix parts do not have a stake, use 38 part number with white sealant only.

Dimension data can change without notice.
