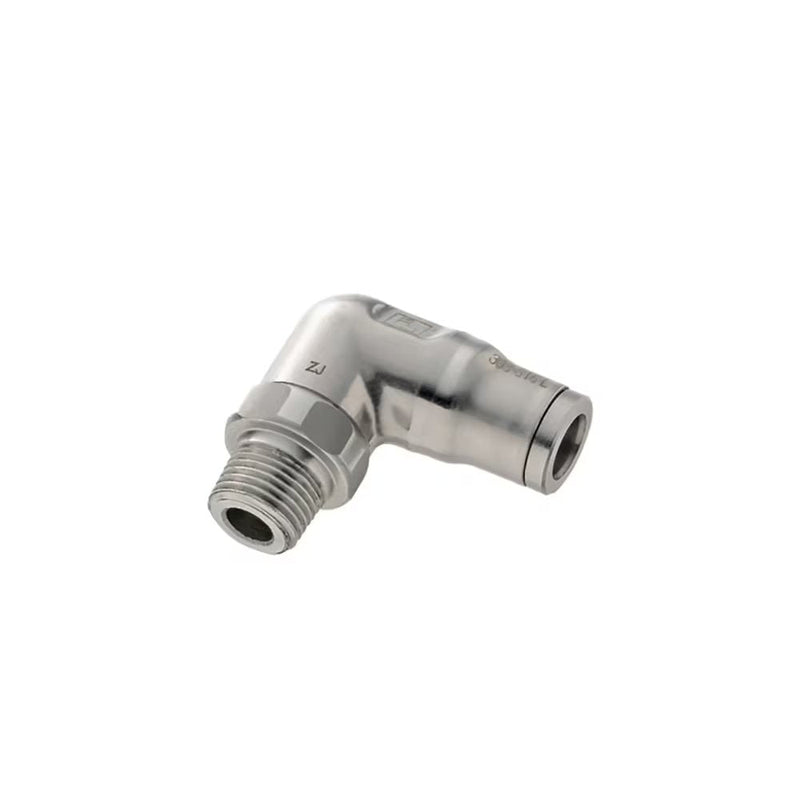

3889 10 13 by Parker | Legris Stud Swivel Fitting | 10 mm Tube Size x 1/4" Male BSPT Thread | 17 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 2

$227.40 - $227.40

$227.40

$291.07

$291.07 - $291.07

$291.07

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3889 Compact Stud Elbow, Male BSPT Thread

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 3889 10 13 Parker \| 2 \|
Series:	3889 Series
Shape (Orientation):	90° Elbow
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Swivel, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD	C	F	G	H	L	Kg
3889 04 10	4 mm	1/8"	13 mm	10 mm	18 mm	17 mm	.019 Kg
3889 04 13	4 mm	1/4"	17 mm	10 mm	19.5 mm	16.5 mm	.018 Kg
3889 06 10	6 mm	1/8"	13 mm	12 mm	21.5 mm	20.5 mm	.025 Kg
3889 06 13	6 mm	1/4"	14 mm	12 mm	21.5 mm	20.5 mm	.032 Kg
3889 08 10	8 mm	1/8"	14 mm	15 mm	24 mm	22 mm	.036 Kg
3889 08 13	8 mm	1/4"	14 mm	15 mm	24 mm	22 mm	.036 Kg
3889 08 17	8 mm	3/8"	-	-	-	-	.116 Kg
3889 10 13	10 mm	1/4"	17 mm	17.5 mm	28.5 mm	27.5 mm	.058 Kg
3889 10 17	10 mm	3/8"	19 mm	17.5 mm	28.5 mm	27.5 mm	.068 Kg
3889 12 13	12 mm	1/4"	22 mm	20 mm	33.5 mm	30 mm	.088 Kg
3889 12 17	12 mm	3/8"	22 mm	20 mm	33.5 mm	30 mm	.090 Kg
3889 12 21	12 mm	1/2"	22 mm	20 mm	33.5 mm	33 mm	.097 Kg

The body swivels for positioning purposes. Max. 20 bar
