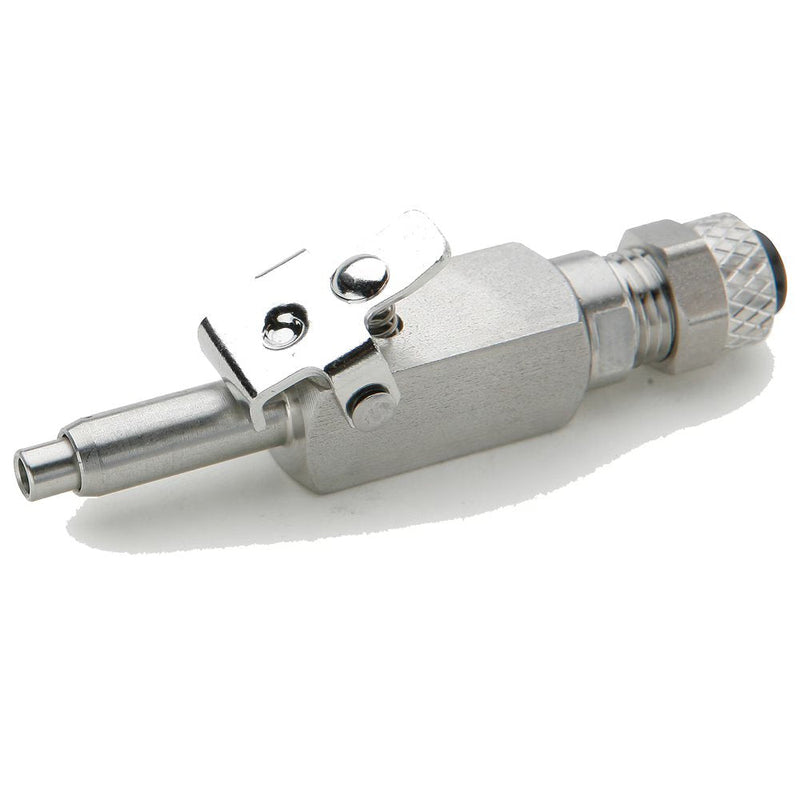

393PDSS-4-4 by Parker | Poly-Tite Fittings | Shutoff Type Insert | 1/4" Tube OD x 1/4" Insert Diameter | .5" Square | 2.46" Length | Straight | Stainless Steel

393PDSS-4-4 by Parker | Poly-Tite Fittings | Shutoff Type Insert | 1/4" Tube OD x 1/4" Insert Diameter | .5" Square | 2.46" Length | Straight | Stainless Steel

Save $202.53 Save $202.53
$506.32
$506.32 - $506.32
$506.32
$303.79
$303.79 - $303.79
$303.79

by Parker Hannifin
Poly-Tite Fittings:Shut-Off Type Insert 393PDSS
Specifications for Variant SKU: 393PDSS-4-4 Parker
Series: 393PDSS Series
Shape (Orientation): Straight
Material(s): Stainless Steel, Acetal Copolymer
Seal Material(s): Fluorocarbon
Special Properties: Silicone Free
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube OD Insert Diameter (D) L Square (C) H Flow Diameter (F)
393PDSS-4-4 1/4" 1/4" 2.46" .500" 1.62" .116"
393PDSS-6-6 3/8" 3/8" 2.60" .500" 1.67" .157"
