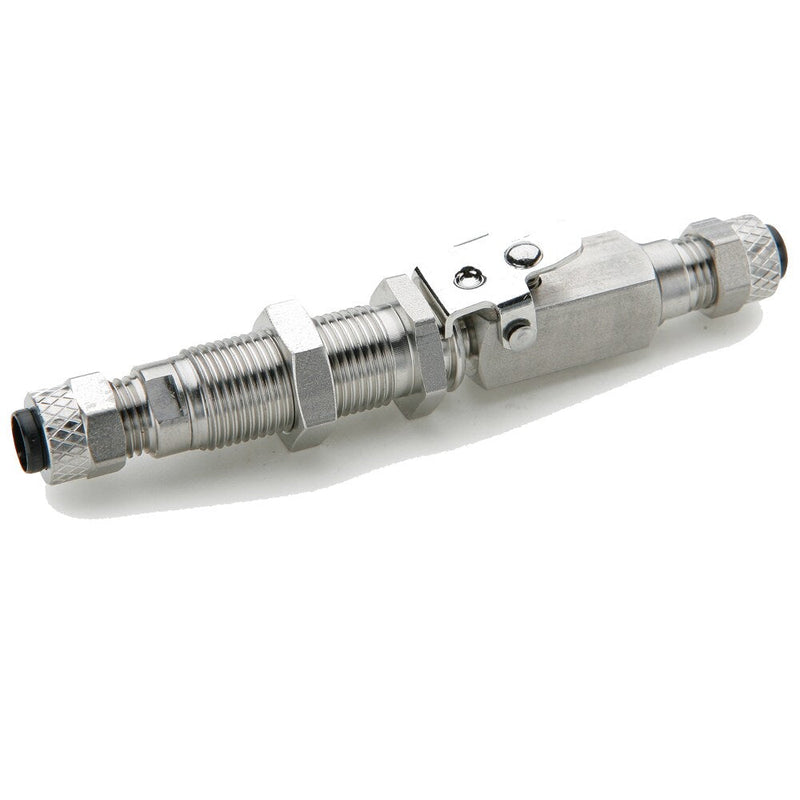

394PDSS-4-4 by Parker | Poly-Tite Fittings | Double End Shutoff Bulkhead Quick Coupler | 1/4" Tube OD x 1/2" Thread | .625" Hex | 3.69" Length | Straight | Stainless Steel

394PDSS-4-4 by Parker | Poly-Tite Fittings | Double End Shutoff Bulkhead Quick Coupler | 1/4" Tube OD x 1/2" Thread | .625" Hex | 3.69" Length | Straight | Stainless Steel

Save $401.30 Save $401.30
$1,003.25
$1,003.25 - $1,003.25
$1,003.25
$601.95
$601.95 - $601.95
$601.95

by Parker Hannifin
Poly-Tite Fittings:Double End Shut-Off Bulkhead Quick Coupler 394PDSS
Specifications for Variant SKU: 394PDSS-4-4 Parker
Series: 394PDSS Series
Shape (Orientation): Straight
Material(s): Stainless Steel, Acetal Copolymer
Seal Material(s): Fluorocarbon
Special Properties: Silicone Free
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube OD Bulkhead Thread L M H Hex (C) Max (P) Flow Diameter (F)
394PDSS-4-4 1/4" 1/2"-24 3.69" 2.67" .625" .32" .84" .125"
394PDSS-6-6 3/8" 11/16"-24 3.91" 2.24" .812" .34" .93" .203"
