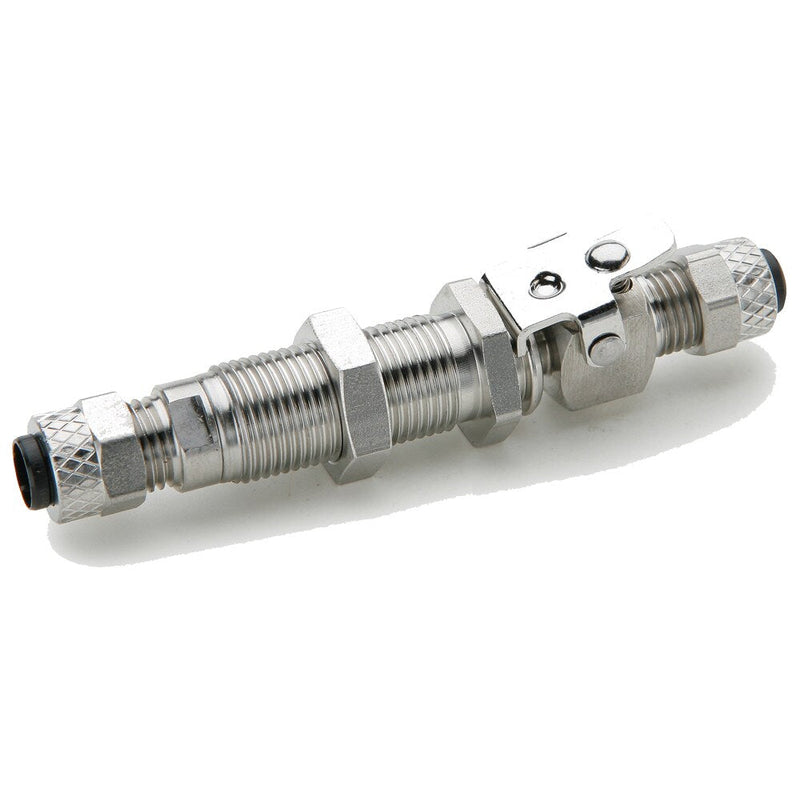

394PSS-6-6 by Parker | Poly-Tite Fittings | Coupler Single End Shut-Off Bulkhead | 3/8" Tube OD x 11/16" Bulkhead Thread | .812" Hex | 3.50" Length | Straight | Stainless Steel

394PSS-6-6 by Parker | Poly-Tite Fittings | Coupler Single End Shut-Off Bulkhead | 3/8" Tube OD x 11/16" Bulkhead Thread | .812" Hex | 3.50" Length | Straight | Stainless Steel

Save $360.51 Save $360.51
$901.28
$901.28 - $901.28
$901.28
$540.77
$540.77 - $540.77
$540.77

by Parker Hannifin
Poly-Tite Fittings:Coupler Single End Shut-Off Bulkhead 394PSS
Specifications for Variant SKU: 394PSS-6-6 Parker
Series: 394PSS Series
Shape (Orientation): Straight
Material(s): Stainless Steel, Acetal Copolymer
Seal Material(s): Fluorocarbon
Special Properties: Silicone Free
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube OD Bulkhead Thread L M Hex (C) H Max (P) Flow Diameter (F)
394PSS-4-4 1/4" 1/2"-24 3.05" 2.06" .625" .31" .84" .125"
394PSS-6-6 3/8" 11/16"-24 3.50" 2.23" .812" .34" .93" .203"
