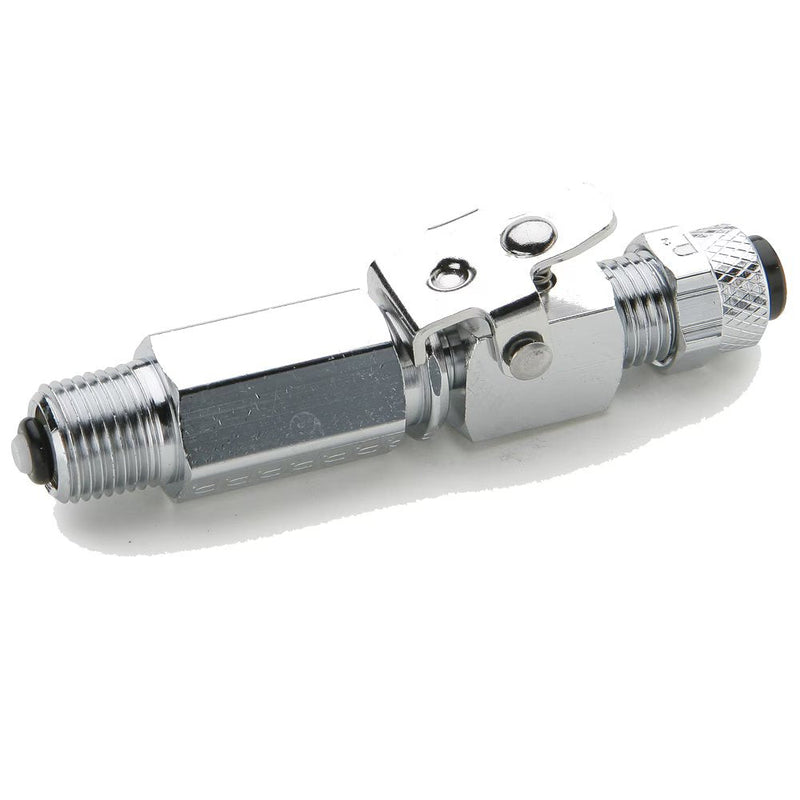

398P-4-2 by Parker | Poly-Tite Fittings | Single End Shutoff Pipe Connector Quick Coupler | 1/4" Tube Size Connector x 1/8" Male Pipe Thread x 3/8" Thread | 1/2" Hex | 2.45" Length | Straight | Chrome Plated Brass | Pack of 5

398P-4-2 by Parker | Poly-Tite Fittings | Single End Shutoff Pipe Connector Quick Coupler | 1/4" Tube Size Connector x 1/8" Male Pipe Thread x 3/8" Thread | 1/2" Hex | 2.45" Length | Straight | Chrome Plated Brass | Pack of 5

Save $143.93 Save $143.93
$359.82
$359.82 - $359.82
$359.82
$215.89
$215.89 - $215.89
$215.89

by Parker Hannifin
Poly-Tite Fittings:Single End Shutoff Pipe Connector Quick Coupler 398P

Package Quantity: 5 Units

Specifications for Variant SKU: 398P-4-2 Parker | 5 |
Series: 398P Series
Shape (Orientation): Straight
Material(s): Chrome-Plated Brass, Acetal Copolymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L M Flow Diameter (F)
398P-4-2 1/4" 1/8" 3/8"-24 1/2" 2.45" 1.32" .125"
398P-4-4 1/4" 1/4" 3/8"-24 9/16" 2.45" 1.32" .125"
398P-6-4 3/8" 1/4" 1/2"-24 5/8" 2.80" 1.80" .203"
