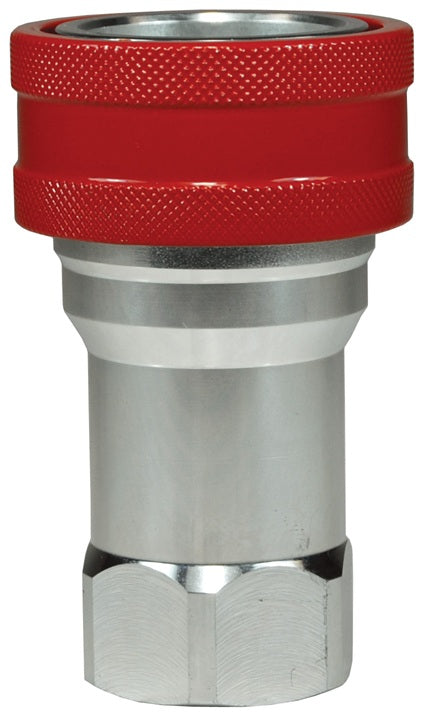

3HF3-SS-BOP by Dixon Valve | Hydraulic Quick Disconnect Coupling | H-BOP-Series | 3/8" Female NPTF x 3/8" Body Size | ISO-B Blowout Preventer Safety Socket | FKM Seal | 316 Stainless Steel

Save $83.36

$208.40

$208.40 - $208.40

$208.40

$125.04

$125.04 - $125.04

$125.04

Dixon Valve & Coupling
Hydraulic Coupling: H-BOP-Series ISO-B Blowout Preventer Safety Coupler (Female Threads)

Designed specifically for blow-out preventer systems on drilling rigs.

Specifications for Variant SKU: 3HF3-SS-BOP Dixon
Series:	H-BOP-Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female ISO-B QD Interchange, 3/8in Female NPTF
Material(s):	316 Stainless Steel
Seal Material(s):	Viton/FKM

Compatibility & Interchange:	Danfoss/Eaton/Hansen HKFR-Series DNP HNV-BOP Series Interchangeable to ISO7241 Series B
Construction:	Machined components are manufactured using solid steel bar stock. Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life. Steel components are plated using ROHS Compliant Trivalent Chrome. Steel nipples are hardened to provide heavy duty performance and resist brinneling. Red powder coated coupler sleeve for easy BOP service identification. Individually marked with the BOP series designation. Locking sleeve is standard.

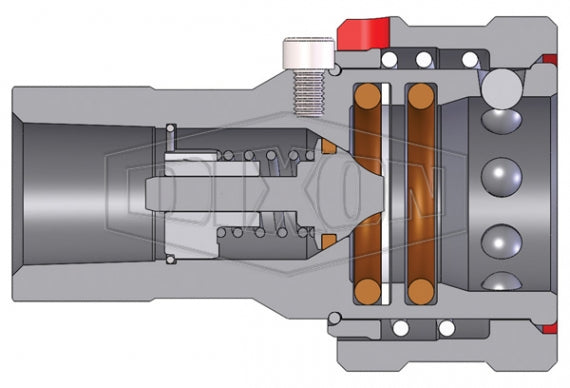

Seal Components:	Blow-out Preventer (BOP) coupling critical seals are severe service FKM. PTFE Anti-Extrusion ring protects main coupling valve seal from dynamic impulse pressure damage. Coupler has redundant O-ring sealing system. Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection.
Note:	BOP couplings have been fire tested and Lloyd's certified to 1300°F (700°C) in accordance with API 16D.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

Rated Pressure Chart
Body Size	Steel Coupler/Plug				316 SS Coupler/Plug				Lloyd's Test Pressure	Flow ΔP = 22 PSI
Body Size	Maximum Working		Burst		Maximum Working		Burst		Lloyd's Test Pressure	Flow ΔP = 22 PSI
3/8"	5,000 PSI	345 Bar	16,500 PSI	1,150 Bar	5,000 PSI	345 Bar	21,500 PSI	1,450 Bar	5,000	12 GPM
1/2"	5,000 PSI	345 Bar	16,000 PSI	1,100 Bar	5,000 PSI	345 Bar	22,000 PSI	1,500 Bar	5,000	15 GPM
3/4"	5,000 PSI	345 Bar	16,500 PSI	1,150 Bar	5,000 PSI	345 Bar	21,500 PSI	1,450 Bar	5,000	29 GPM
1"	5,000 PSI	345 Bar	16,000 PSI	1,100 Bar	5,000 PSI	345 Bar	15,000 PSI	1,000 Bar	5,000	50 GPM

H-BOP-Series \| Blowout Preventer Safety Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
3HF3-BOP	Socket/Female	3/8"	3/8" - 18 Female NPTF	Steel	2.50" (63.5mm)	1.41" (35.8mm)	7/8"
3HF3-SS-BOP	Socket/Female	3/8"	3/8" - 18 Female NPTF	316 Stainless	2.50" (63.5mm)	1.41" (35.8mm)	7/8"
4HF4-BOP	Socket/Female	1/2"	1/2" - 14 Female NPTF	Steel	2.86" (72.6mm)	1.86" (47.2mm)	1-5/16"
4HF4-SS-BOP	Socket/Female	1/2"	1/2" - 14 Female NPTF	316 Stainless	2.86" (72.6mm)	1.86" (47.2mm)	1-5/16"
6HF6-BOP	Socket/Female	3/4"	3/4" - 14 Female NPTF	Steel	3.55" (90.2mm)	2.22" (56.4mm)	1-5/16"
6HF6-SS-BOP	Socket/Female	3/4"	3/4" - 14 Female NPTF	316 Stainless	3.55" (90.2mm)	2.22" (56.4mm)	1-5/16"
8HF8-BOP	Socket/Female	1"	1" - 11-1/2 Female NPTF	Steel	4.13" (104.9mm)	2.49" (63.2mm)	1-5/8"
8HF8-SS-BOP	Socket/Female	1"	1" - 11-1/2 Female NPTF	316 Stainless	4.13" (104.9mm)	2.49" (63.2mm)	1-5/8"

H-BOP-Series \| Blowout Preventer Safety Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex
H3F3-BOP	Plug/Male	3/8"	3/8" - 18 Female NPTF	Steel	1.53" (38.9mm)	0.96" (24.4mm)	7/8"
H3F3-SS-BOP	Plug/Male	3/8"	3/8" - 18 Female NPTF	316 Stainless	1.53" (38.9mm)	0.96" (24.4mm)	7/8"
H4F4-BOP	Plug/Male	1/2"	1/2" - 14 Female NPTF	Steel	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"
H4F4-SS-BOP	Plug/Male	1/2"	1/2" - 14 Female NPTF	316 Stainless	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"
H6F6-BOP	Plug/Male	3/4"	3/4" - 14 Female NPTF	Steel	2.41" (61.2mm)	1.44" (36.6mm)	1-5/16"
H6F6-SS-BOP	Plug/Male	3/4"	3/4" - 14 Female NPTF	316 Stainless	2.41" (61.2mm)	1.44" (36.6mm)	1-5/16"
H8F8-BOP	Plug/Male	1"	1" - 11-1/2 Female NPTF	Steel	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"
H8F8-SS-BOP	Plug/Male	1"	1" - 11-1/2 Female NPTF	316 Stainless	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
