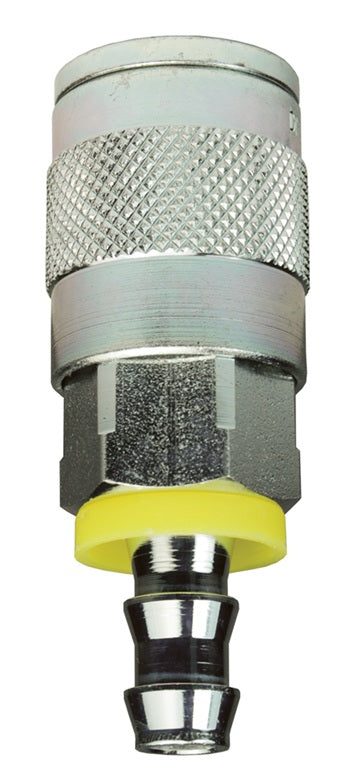

3JB3 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | Push-Loc Hose Barb | 3/8" Hose ID x 3/8" Automotive Interchange | Socket | Nitrile Seal | Steel
3JB3 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | Push-Loc Hose Barb | 3/8" Hose ID x 3/8" Automotive Interchange | Socket | Nitrile Seal | Steel
3JB3 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | Push-Loc Hose Barb | 3/8" Hose ID x 3/8" Automotive Interchange | Socket | Nitrile Seal | Steel

3JB3 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | Push-Loc Hose Barb | 3/8" Hose ID x 3/8" Automotive Interchange | Socket | Nitrile Seal | Steel

Save $10.11 Save $10.11
$25.28
$25.28 - $25.28
$25.28
$15.17
$15.17 - $15.17
$15.17

Dixon Valve & Coupling
Pneumatic Coupling: J-Series Automotive Interchange Coupler (Push-Loc Barb)
Specifications for Variant SKU: 3JB3 Dixon
Series: J-Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female Tru-Flate QD Interchange, 3/8in Push-on Hose Barb
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Truflate Automotive Interchange
  • Parker 10 Series, Rectus 55KM and Tomco A2100/PT400

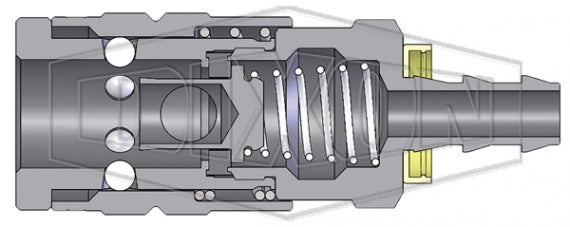

Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Nitrile (Nitrile Rubber) seals are standard. (temperature range of -40°F to 250°F (-40°C to 121°C))
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel sleeve and steel tubular valve.
Safety Notes:
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
J-Series | Automotive Interchange Coupler (Push-Loc Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose I.D. Material Length Max.
OD		 Hex Max. Working
Pressure		 Burst
Pressure
Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:		 Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:
2JB2-B Socket/Female 1/4" 1/4" Brass 2.37"
(60.2mm)		 0.88"
(22.4mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 10,500 PSI
(724 bar)		 11,500 PSI
(793 bar)
2JB3-B Socket/Female 1/4" 3/8" Brass 2.49"
(63.2mm)		 0.88"
(22.4mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 10,500 PSI
(724 bar)		 11,500 PSI
(793 bar)
3JB2 Socket/Female 3/8" 1/4" Steel 2.80"
(71.1mm)		 1.06"
(26.9mm)		 7/8" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 18,000 PSI
(1,241 bar)
3JB3 Socket/Female 3/8" 3/8" Steel 2.80"
(71.1mm)		 1.06"
(26.9mm)		 7/8" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 18,000 PSI
(1,241 bar)
3JB4 Socket/Female 3/8" 1/2" Steel 2.80"
(71.1mm)		 1.06"
(26.9mm)		 7/8" - - - -
4FB3 Socket/Female 1/2" 3/8" Steel 3.40"
(86.4mm)		 1.19"
(30.2mm)		 1" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)
4FB4 Socket/Female 1/2" 1/2" Steel 3.40"
(86.4mm)		 1.19"
(30.2mm)		 1" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)
J-Series | Automotive Interchange Plug (Push-Loc Barb)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
J2B2 Plug/Male 1/4" 1/4" Steel 2.09"
(53.1mm)		 0.69"
(17.5mm)		 -
  • Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (793 bar)
    J2B3 Plug/Male 1/4" 3/8" Steel 2.09"
    (53.1mm)    		 0.86"
    (21.8mm)    		 -
    • Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (793 bar)
      J3B3 Plug/Male 3/8" 3/8" Steel 2.21"
      (56.1mm)      		 0.75"
      (19.1mm)      		 -
      • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 18,000 PSI (1,241 bar)
        J4B4 Plug/Male 1/2" 1/2" Steel 2.67"
        (67.8mm)        		 0.75"
        (19.1mm)        		 -
        • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (690 bar)
