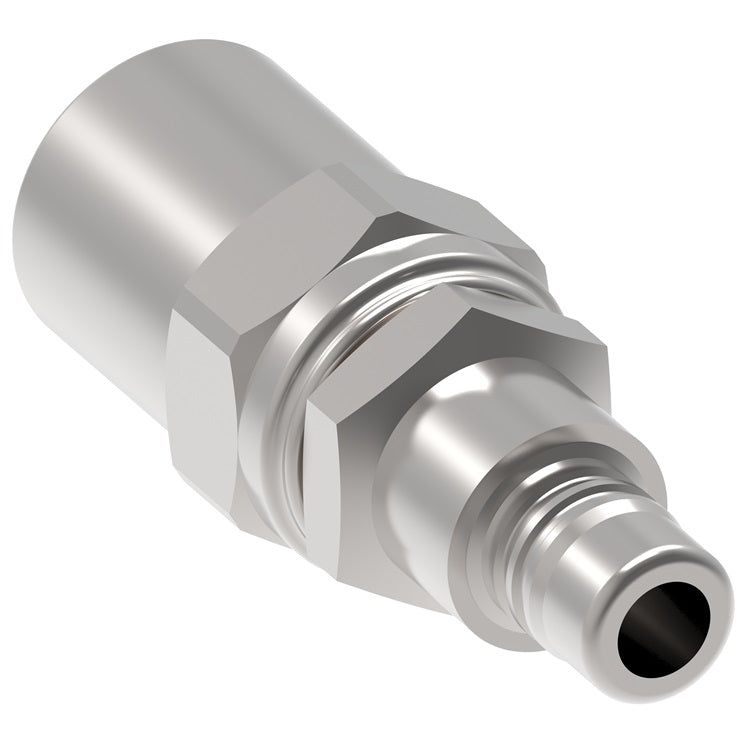

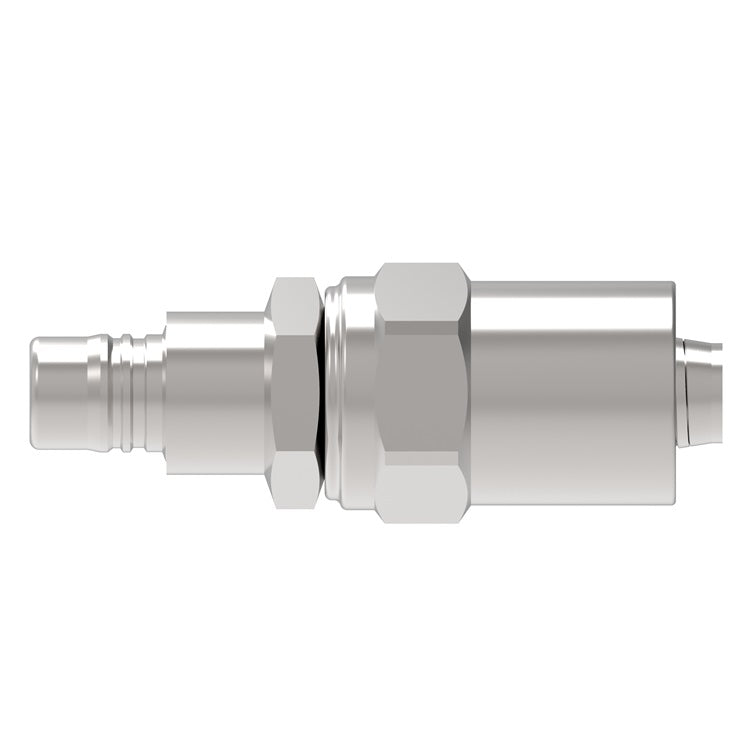

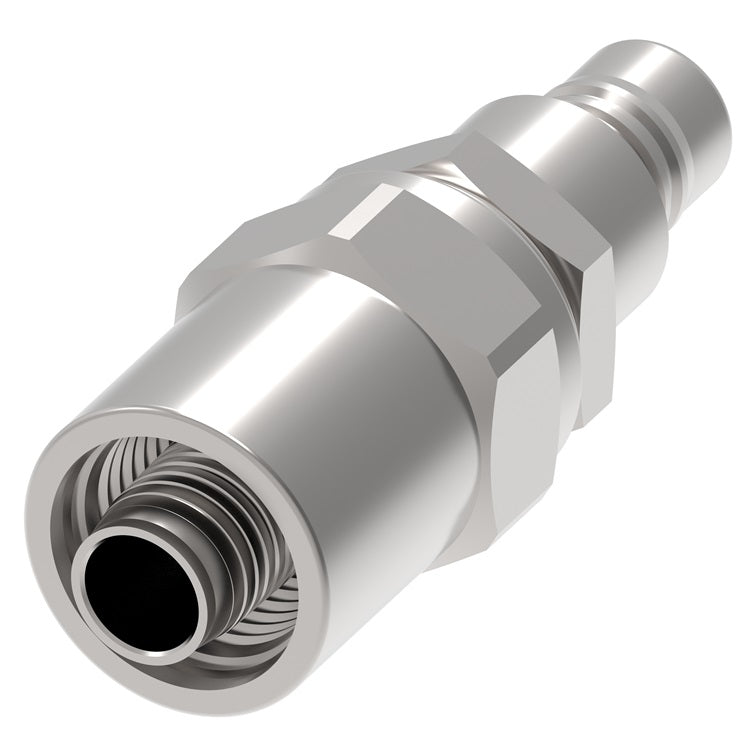

3L28P13 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | Hose Clamp End | 13/16" Hose OD | 1/2" Hose ID x 3/8" Body Size | Plug | Steel
3L28P13 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | Hose Clamp End | 13/16" Hose OD | 1/2" Hose ID x 3/8" Body Size | Plug | Steel
3L28P13 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | Hose Clamp End | 13/16" Hose OD | 1/2" Hose ID x 3/8" Body Size | Plug | Steel
3L28P13 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | Hose Clamp End | 13/16" Hose OD | 1/2" Hose ID x 3/8" Body Size | Plug | Steel

3L28P13 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | Hose Clamp End | 13/16" Hose OD | 1/2" Hose ID x 3/8" Body Size | Plug | Steel

$39.06 - $39.06
$39.06
$39.06 - $39.06
$39.06

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 3RL Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 2RL/3RL ring lock series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.
Specifications for Variant SKU: 3L28P13 Danfoss
Brand: Hansen
Series: 3RL Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • High Flow capacity.
  • Push to connect with a ring lock sleeve.
  • Ring lock design prevents accidental disconnection.
  • To disconnect rotate sleeve 20 degrees.
Applications & Markets:
  • Shipyards
  • General Pneumatics
  • Mining
  • Marine
Materials:
  • Standard body material: Trivalent Plated Steel
  • Standard seal material: Buna-N
Series Coupling Size Max. Operating Pressure Min. Burst Pressure Rated Flow
2RL 1/4" 20 bar 300 psi 80 bar 1,200 psi 1,350 lpm 48 scfm
3RL 3/8" 20 bar 300 psi 80 bar 1,200 psi 2,250 lpm 80 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
3RL Series | Socket
Part Number Coupling Type Body Size Hose ID Hose OD End Type Figure Dimensions
A B Hex
3R23D9 Socket/Female 3/8" 3/8" 11/16" Hose Crimp End 1 3.06"
(77.7mm)		 1.31"
(33.3mm)		 0.81"
(20.57mm)
3R23D11 Socket/Female 3/8" 3/8" 3/4" Hose Crimp End 1 3.06"
(77.7mm)		 1.31"
(33.3mm)		 0.88"
(22.35mm)
3R28P13 Socket/Female 3/8" 1/2" 13/16" Hose Crimp End 1 3.66"
(93.0mm)		 1.31"
(33.3mm)		 0.94"
(23.88mm)
3R28P15 Socket/Female 3/8" 1/2" 7/8" Hose Crimp End 1 3.66"
(93.0mm)		 1.31"
(33.3mm)		 1.00"
(25.40mm)
3R33R25 Socket/Female 3/8" 3/4" 1-3/16" Hose Crimp End 1 3.79"
(96.3mm)		 1.31"
(33.3mm)		 1.31"
(33.27mm)
3RL Series | Plugs
Part Number Coupling Type Body Size Hose ID Hose OD End Type Figure Dimensions
C D Hex
3L23D9 Plug/Male 3/8" 3/8" 11/16" Hose Crimp End 2 2.45"
(62.2mm)		 0.91"
(23.1mm)		 0.81"
(20.57mm)
3L23D11 Plug/Male 3/8" 3/8" 3/4" Hose Crimp End 2 2.45"
(62.2mm)		 0.98"
(24.9mm)		 0.88"
(22.35mm)
3L28P13 Plug/Male 3/8" 1/2" 13/16" Hose Crimp End 2 3.14"
(79.8mm)		 1.05"
(26.7mm)		 0.94"
(23.88mm)
3L28P15 Plug/Male 3/8" 1/2" 7/8" Hose Crimp End 2 3.14"
(79.8mm)		 1.12"
(28.4mm)		 1.00"
(25.40mm)
