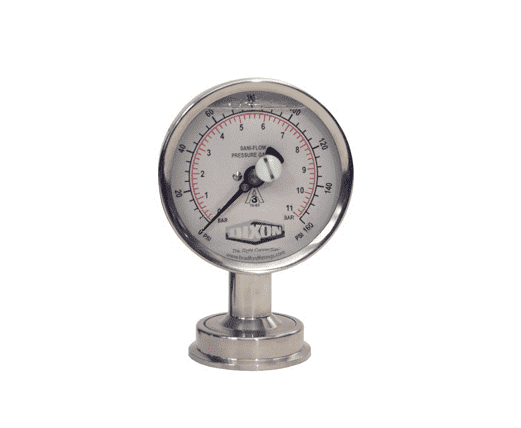

3S-C-2U-NFBTSS Dixon Stainless Steel Bottom Mount Sanitary Pressure Gauge (No Fill) - 3-1/2" Dial Size - 2" Clamp Size - 0-60 PSI Range

3S-C-2U-NFBTSS Dixon Stainless Steel Bottom Mount Sanitary Pressure Gauge (No Fill) - 3-1/2" Dial Size - 2" Clamp Size - 0-60 PSI Range

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Pressure Gauges
3-1/2" Gauge - 0-60 PSI Range - Stainless Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 3S-C-2U-NFBTSS Dixon
Features:
  • Accuracy: ± 1.5% of full scale
  • Over range capacity: 30%
  • Wetted surfaces: 316L stainless steel
  • Surface finishes (wetted parts): Ra max = 25 microinches
  • Case material: 304 stainless steel
  • Dial size: 3-1/2"
  • Lens material: polycarbonate
  • Temperature range: 0°F (-18°C) to 250°F (121°C)
  • Standard fill: food grade glycerin
  • Rezero feature: standard on pointer
Part Number Dial Size Clamp Size Pressure Range
(PSI)		 Fill Mount
3S-C-15I-GFBKSS 3-1/2" 1-1/2" 0-60 PSI Glycerin Center Back Mount
3S-C-15U-GFBKSS 3-1/2" 1-1/2" 0-60 PSI Glycerin Back Mount
3S-C-15U-GFBTSS 3-1/2" 1-1/2" 0-60 PSI Glycerin Bottom Mount
3S-C-15U-GFLFSS 3-1/2" 1-1/2" 0-60 PSI Glycerin Left Mount
3S-C-15U-GFRTSS 3-1/2" 1-1/2" 0-60 PSI Glycerin Right Mount
3S-C-15U-NFBKSS 3-1/2" 1-1/2" 0-60 PSI No Fill Center Back Mount
3S-C-15U-NFBTSS 3-1/2" 1-1/2" 0-60 PSI No Fill Bottom Mount
3S-C-2I-GFBTSS 3-1/2" 2" 0-60 PSI Glycerin Bottom Mount
3S-C-2U-GFBKSS 3-1/2" 2" 0-60 PSI Glycerin Center Back Mount
3S-C-2U-GFBTSS 3-1/2" 2" 0-60 PSI Glycerin Bottom Mount
3S-C-2U-GFRTSS 3-1/2" 2" 0-60 PSI Glycerin Right Mount
3S-C-2U-NFBTSS 3-1/2" 2" 0-60 PSI No Fill Bottom Mount
3S-C-3U-GFBTSS 3-1/2" 3" 0-60 PSI Glycerin Bottom Mount
