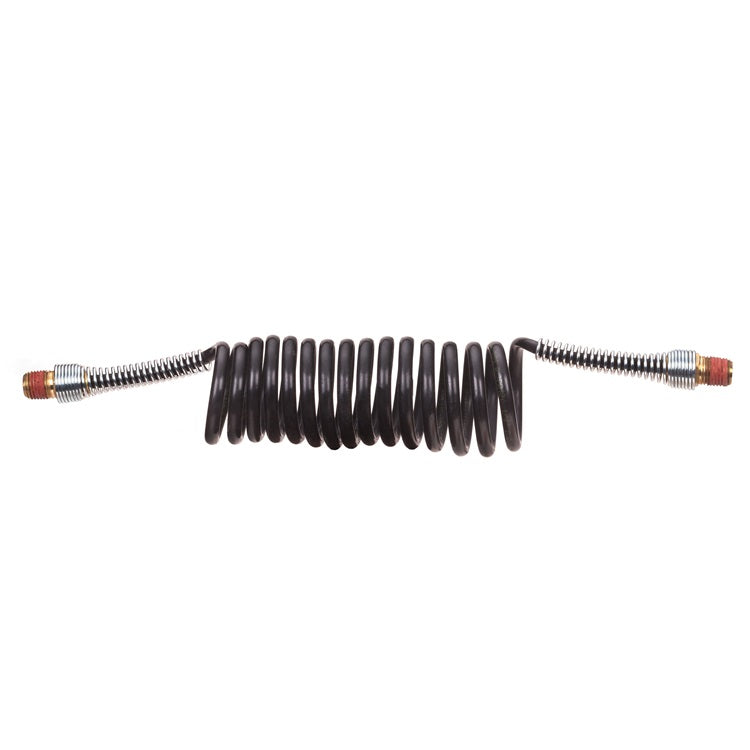

3SCE-0303304-166 Synflex Eclipse by Danfoss | 3SCE Eclipse | Fifth-Wheel Slider Coil Hose | 1/4" Male Pipe x 1/4" Male Pipe | Black | 3.5" Pigtails | 54ft Length

$35.36 - $35.36

$35.36

$35.36 - $35.36

$35.36

Synflex by Danfoss
3SCE Eclipse Series | Fifth-Wheel Slider Coil Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: 3SCE-0303304-166 Danfoss
Brand:	Aeroquip, Synflex Eclipse
Series:	Air Brake Coils
Tubing Construction:	Nylon
Applicable Specs & Approvals:	D.O.T. FMVSS 106, SAE J844 Type B

Hose Properties:
Application:	Articulating connections for air brake line systems (connections between towed and towing motor vehicle). Tractor-to-trailer air connections used in extremely low temperatures.	SAE Rating:	Meets: SAE J844 Type B, DOT-FMVSS 106, (49 FR571.106)
Tube:	100% Polyamide	Reinforcement:	Polyester Yarn
Operating Temperature:	-65°F to +200°F (-54°C to +93°C)
Features:	Brass end fittings with corrosion resistant springguards. Superior abrasion resistance. Excellent return and coil memory. Enhanced flexibility and extension.

Part Number	Valve Pigtail Length		End Fittings	Working Length		Retracted Length
Part Number	mm	in	End Fittings	mm	ft	mm	in
3SCE-0303304-166	88,9 mm	3.50"	1/4" Male Pipe x 1/4" Male Pipe	1.371,6mm	54.00"	254,0mm	10.00"
