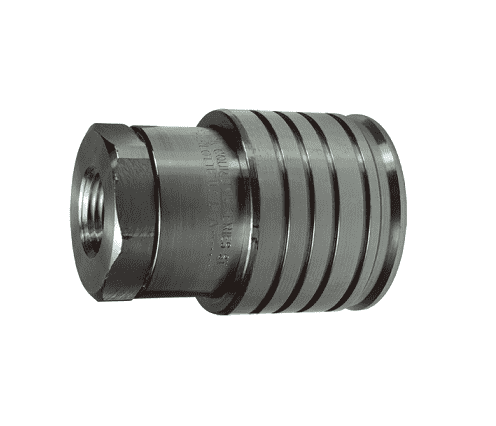

3STF4-SS Dixon Stainless Steel ST-Series Quick Disconnect 3/8" Snap-Tite 71-Series Interchange Hydraulic Coupler - 1/2"-14 Female NPTF

3STF4-SS Dixon Valve Stainless Steel ST-Series Quick Disconnect 3/8" Snap-Tite 71-Series Interchange Hydraulic Coupler - 1/2"-14 Female NPTF

Save $19.87 Save $19.87
$178.85
$178.85 - $178.85
$178.85
$158.98
$158.98 - $158.98
$158.98

Dixon Quick Disconnect Couplings - ST-Series Hydraulic Couplings - ST-Series Snap-Tite 71-Series Interchange Coupler (Female Threads)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 3STF4-SS Dixon
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel coupler sleeves are hardened to resist deformation and maximize service life.
  • Nitrile (Buna-N) seals are standard
  • Incorporates PTFE or TPC-ET anti-extrusion rings to protect seal components from dynamic impulse damage.
Compatibility & Interchange Data:
  • Interchangeable with Snap-Tite 71-Series
Seal Components:
  • Nitrile (Buna-N) seals are standard, providing a temperature range of -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C).
  • All couplers and nipples incorporate PTFE or TPC-ET anti-extrusion rings to protect the seal components from dynamic impulse damage.
Other Components:
Part Number Size Female Threads Material Length Max. OD Hex Max. Operating Pressure Burst Pressure Weight (Lbs.)
2STF2 1/4" 1/4"-18 NPTF steel 1.96" 1.23" 15/16" 10000 PSI 27300 PSI 0.2500
2STF2-SS 1/4" 1/4"-18 NPTF 316 stainless 1.96" 1.23" 15/16" 5000 PSI 28000 PSI 0.2600
2STBF2 1/4" 1/4"-19 BSPP steel 1.96" 1.23" 15/16" 10000 PSI 27300 PSI 0.2500
2STBF2-SS 1/4" 1/4"-19 BSPP 316 stainless 1.96" 1.23" 15/16" 5000 PSI 28000 PSI 0.2600
3STF2 3/8" 1/4"-18 NPTF steel 2.36" 1.60" 1-3/16" 10000 PSI 27300 PSI 0.3800
3STF3 3/8" 3/8"-18 NPTF steel 2.36" 1.60" 1-3/16" 10000 PSI 27300 PSI 0.3700
3STF3-SS 3/8" 3/8"-18 NPTF 316 stainless 2.36" 1.60" 1-3/16" 5000 PSI 28000 PSI 0.3800
3STBF3 3/8" 3/8"-19 BSPP steel 2.36" 1.60" 1-3/16" 10000 PSI 27300 PSI 0.3700
3STBF3-SS 3/8" 3/8"-19 BSPP 316 stainless 2.36" 1.60" 1-3/16" 5000 PSI 28000 PSI 0.3800
3STF4 3/8" 1/2"-14 NPTF steel 2.36" 1.60" 1-3/16" 10000 PSI 27300 PSI 0.3600
3STF4-SS 3/8" 1/2"-14 NPTF 316 stainless 2.36" 1.60" 1-3/16" 5000 PSI 28000 PSI 0.3700
3STBF4 3/8" 1/2"-14 BSPP steel 2.36" 1.60" 1-3/16" 10000 PSI 27300 PSI 0.3600
3STBF4-SS 3/8" 1/2"-14 BSPP 316 stainless 2.36" 1.60" 1-3/16" 5000 PSI 28000 PSI 0.3700
4STF4 1/2" 1/2"-14 NPTF steel 2.77" 1.98" 1-1/2" 10000 PSI 22500 PSI 0.4700
4STF4-SS 1/2" 1/2"-14 NPTF 316 stainless 2.77" 1.98" 1-1/2" 5000 PSI 25000 PSI 0.4900
4STBF4 1/2" 1/2"-14 BSPP steel 2.77" 1.98" 1-1/2" 10000 PSI 22500 PSI 0.4700
4STBF4-SS 1/2" 1/2"-14 BSPP 316 stainless 2.77" 1.98" 1-1/2" 5000 PSI 25000 PSI 0.4900
4STOF4 1/2" 3/4"-16 ORB steel 2.77" 1.98" 1-1/2" 10000 PSI 22500 PSI 0.4900
6STF6 3/4" 3/4"-14 NPTF steel 3.03" 1.98" 1-3/4" 7500 PSI 20200 PSI 1.9800
6STF6-SS 3/4" 3/4"-14 NPTF 316 stainless 3.03" 1.98" 1-3/4" 5000 PSI 22800 PSI 2.0500
6STBF6 3/4" 3/4"-14 BSPP steel 3.03" 1.98" 1-3/4" 7500 PSI 20200 PSI 1.9800
6STBF6-SS 3/4" 3/4"-14 BSPP 316 stainless 3.03" 1.98" 1-3/4" 5000 PSI 22800 PSI 2.0500
6STOF6 3/4" 1-1/16"-12 ORB steel 3.03" 1.98" 1-3/4" 7500 PSI 20200 PSI 1.8900
8STF8 1" 1"-11 1/2 NPTF steel 3.33" 2.73" 2" 7500 PSI 19400 PSI 2.7800
8STF8-SS 1" 1"-11 1/2 NPTF 316 stainless 3.33" 2.73" 2" 4000 PSI 18500 PSI 2.8300
8STBF8 1" 1"-11 BSPP steel 3.33" 2.73" 2" 7500 PSI 19400 PSI 2.7800
8STBF8-SS 1" 1"-11 BSPP 316 stainless 3.33" 2.73" 2" 4000 PSI 18500 PSI 2.8300
8STOF8 1" 1-5/16"-12 ORB steel 3.33" 2.73" 2" 7500 PSI 19400 PSI 2.7100
8STF10 1" 1-1/4"-11 1/2 NPTF steel 3.67" 2.73" 2" 7500 PSI 19400 PSI 2.8400
8STF10-SS 1" 1-1/4"-11 1/2 NPTF 316 stainless 3.67" 2.73" 2" 4000 PSI 18500 PSI 2.9000
8STBF10 1" 1-1/4"-11 BSPP steel 3.67" 2.73" 2" 7500 PSI 19400 PSI 2.8400
8STBF10-SS 1" 1-1/4"-11 BSPP 316 stainless 3.67" 2.73" 2" 4000 PSI 18500 PSI 2.9000
8STOF10 1" 1-5/8"-12 ORB steel 3.67" 2.73" 2" 7500 PSI 19400 PSI 2.7900
