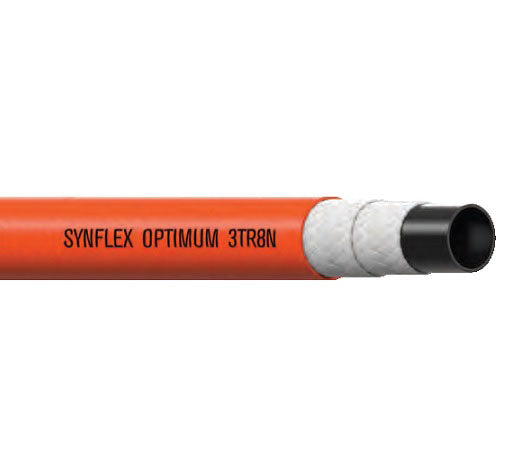

3TR8N-08-050BX Synflex Optimum by Danfoss | 3TR8N Non-Conductive Thermoplastic Hydraulic Hose (SAE 100R8) | -08 Hose | 50ft Box (Two Pieces)

3TR8N-08-050BX Synflex Optimum by Danfoss | 3TR8N Non-Conductive Thermoplastic Hydraulic Hose | SAE 100R8 | -08 Hose | Old Part # 3E80-08 | 50ft Box (Two Pieces)

$486.59 - $486.59
$486.59
$486.59 - $486.59
$486.59

Synflex Optimum by Danfoss
3TR8N Thermoplastic Hydraulic Hose - SAE 100R8

3TR8N supersedes 3E80

Package Quantity: 50 FT

Specifications for Variant SKU: 3TR8N-08-050BX Danfoss | 50 |
Brand: Aeroquip, Synflex Optimum
Series: 3TR8N Series
Hose Color(s): Orange
Dash Size: -8
Internal Diameter: 0.50in
Outer Diameter: 0.90in
Tubing Construction: Nylon
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE 100R8

SPECIFICATIONS

Applications: Air tools, Cooling/misting/dust suppression, Forestry delimber, General construction, General hydraulic, High pressure chemical transfer, Marine steering, Mobile machinery, Utility vehicles, Recreational vehicles, Rescue tools & equipment
SAE Rating: SAE 100R8 Other Ratings: N/A
Tube: Nylon Reinforcement: 2-textile braid
Cover: Nonstick polyurethane Temperature Range: For oil-based fluids: -40°C to +100°C (-40°F to +212°F)
For water-based fluids: -40°C to +66°C (-40°F to +150°F)
Approved Fittings: 4TA series, TTC/Z series with sleeve (FF91064) Part Number Key BC: Continuous length in box
BX: 2 lengths per box, no length less than 20 ft.
RL: Random length reel, 2 lengths per reel, no length less than 20 ft.
R: Continuous length on reel
Other Features:
  • UV / Ozone Protection: The thermoplastic polyurethane and polyester outer-cover resists ozone, ultraviolent light and aging.
  • Easier Routing and Installation: Eaton Synflex Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking.
  • Custom Thermoforming: Ability to mold into configurations that match system design.
  • Higher Abrasion Resistance: The new TPU and polyester cover increases abrasion resistant by 10%.
  • Powerful Performance: Lift and handle heavy loads with hose power ranges extending from 1,015 psi to 5,000 psi.
  • Chemical Resistance: Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids.
  • Flexible Design: Lightweight hose design drives performance efficiencies, reducing vehicle power requirements.
  • Lighter Weight: Synthetic reinforced thermoplastic hoses are about 2x lighter then equivalent wire braided rubber hose.
  • Bonding Capabilities: Synflex thermoplastic hoses can be permanently joined without the use of any mechanical devices.
  • System Cleanliness: Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system.
  • Noise Reduction: Special reinforcements on the thermoplastic hoses help reduce machine noise.
50ft Box (Two Pieces)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
in. in. bar PSI bar PSI in. kg/m lbs/ft
3TR8N-04-050BX -04 0.25" 0.59" 350 bar 5100 PSI 1400 bar 20400 PSI 1.50" 50ft 0,16 kg/m 0.11 lbs/ft
3TR8N-06-050BX -06 0.38" 0.75" 280 bar 4500 PSI 1120 bar 16200 PSI 2.25" 50ft 0,23 kg/m 0.15 lbs/ft
3TR8N-08-050BX -08 0.50" 0.90" 245 bar 3550 PSI 980 bar 14200 PSI 3.00" 50ft 0,29 kg/m 0.20 lbs/ft
3TR8N-12-050BX -12 0.75" 1.13" 157 bar 2300 PSI 628 bar 9200 PSI 4.50" 50ft 0,38 kg/m 0.25 lbs/ft
3TR8N-16-050BX -16 1.00" 1.43" 140 bar 2050 PSI 560 bar 8200 PSI 7.75" 50ft 0,57 kg/m 0.38 lbs/ft
250ft / Box (Two Pieces)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
in. in. bar PSI bar PSI in. kg/m lbs/ft
3TR8N-04-250BX -04 0.25" 0.59" 350 bar 5100 PSI 1400 bar 20400 PSI 1.50" 250ft 0,16 kg/m 0.11 lbs/ft
3TR8N-06-250BX -06 0.38" 0.75" 280 bar 4500 PSI 1120 bar 16200 PSI 2.25" 250ft 0,23 kg/m 0.15 lbs/ft
3TR8N-08-250BX -08 0.50" 0.90" 245 bar 3550 PSI 980 bar 14200 PSI 3.00" 250ft 0,29 kg/m 0.20 lbs/ft
3TR8N-12-200BX -12 0.75" 1.13" 157 bar 2300 PSI 628 bar 9200 PSI 4.50" 200ft 0,38 kg/m 0.25 lbs/ft
3TR8N-16-200BX -16 1.00" 1.43" 140 bar 2050 PSI 560 bar 8200 PSI 7.75" 200ft 0,57 kg/m 0.38 lbs/ft
250ft / Box (One Continuous Piece)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
in. in. bar PSI bar PSI in. kg/m lbs/ft
3TR8N-04-250BC -04 0.25" 0.59" 350 bar 5100 PSI 1400 bar 20400 PSI 1.50" 250ft 0,16 kg/m 0.11 lbs/ft
3TR8N-06-250BC -06 0.38" 0.75" 280 bar 4500 PSI 1120 bar 16200 PSI 2.25" 250ft 0,23 kg/m 0.15 lbs/ft
3TR8N-08-250BC -08 0.50" 0.90" 245 bar 3550 PSI 980 bar 14200 PSI 3.00" 250ft 0,29 kg/m 0.20 lbs/ft
3TR8N-12-200BC -12 0.75" 1.13" 157 bar 2300 PSI 628 bar 9200 PSI 4.50" 200ft 0,38 kg/m 0.25 lbs/ft
3TR8N-16-200BC -16 1.00" 1.43" 140 bar 2050 PSI 560 bar 8200 PSI 7.75" 200ft 0,57 kg/m 0.38 lbs/ft
500ft Reel (Two Pieces)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
in. in. bar PSI bar PSI in. kg/m lbs/ft
3TR8N-04-500RL -04 0.25" 0.59" 350 bar 5100 PSI 1400 bar 20400 PSI 1.50" 500ft 0,16 kg/m 0.11 lbs/ft
3TR8N-06-500RL -06 0.38" 0.75" 280 bar 4500 PSI 1120 bar 16200 PSI 2.25" 500ft 0,23 kg/m 0.15 lbs/ft
3TR8N-08-500RL -08 0.50" 0.90" 245 bar 3550 PSI 980 bar 14200 PSI 3.00" 500ft 0,29 kg/m 0.20 lbs/ft
3TR8N-12-500RL -12 0.75" 1.13" 157 bar 2300 PSI 628 bar 9200 PSI 4.50" 500ft 0,38 kg/m 0.25 lbs/ft
3TR8N-16-500RL -16 1.00" 1.43" 140 bar 2050 PSI 560 bar 8200 PSI 7.75" 500ft 0,57 kg/m 0.38 lbs/ft
Twin Line: 250ft / Box (Two Pieces)
Part Number Hose Size Hose ID Hose OD Working Pressure Min. Burst
Pressure		 Min. Bend
Radius		 Standard
Length		 Weight
in. in. bar PSI bar PSI in. kg/m lbs/ft
3TR8N-06-2-250BX -06 0.38" 0.75" 280 bar 4500 PSI 1120 bar 16200 PSI 2.25" 250ft 0,23 kg/m 0.15 lbs/ft
