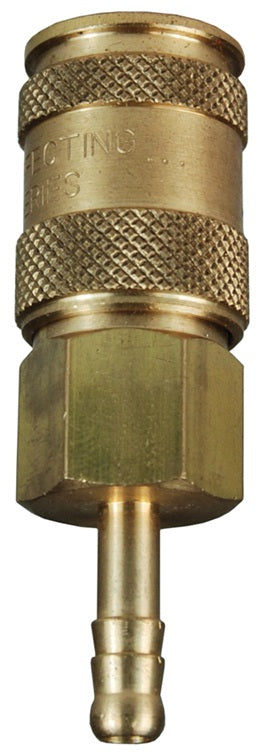

3US3-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | U-Series | Hose Barb | 3/8" Hose ID x 3/8" Automatic Universal | Socket | Nitrile Seal | Brass
3US3-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | U-Series | Hose Barb | 3/8" Hose ID x 3/8" Automatic Universal | Socket | Nitrile Seal | Brass
3US3-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | U-Series | Hose Barb | 3/8" Hose ID x 3/8" Automatic Universal | Socket | Nitrile Seal | Brass

3US3-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | U-Series | Hose Barb | 3/8" Hose ID x 3/8" Automatic Universal | Socket | Nitrile Seal | Brass

Save $15.17 Save $15.17
$37.93
$37.93 - $37.93
$37.93
$22.76
$22.76 - $22.76
$22.76

Dixon Valve & Coupling
Pneumatic Coupling: U-Series Automatic Universal Coupler (Standard Hose Barb)
Specifications for Variant SKU: 3US3-B Dixon
Series: U-Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female Semi-Universal QD Interchange, 3/8in Hose Barb
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • 2U-Series: 2U-Series 6-in-1 (ARO 210, Industrial, Truflate, Lincoln, Italian, and CEJN 320)
  • 3U-Series: 3U-Series 4-in-1 (ARO 310, Industrial, Truflate and CEJN410)
  • Parker UC-Series, Hansen Auto-Flo 23 and Coilhose Series UC
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel springs. Carbon steel balls and retaining rings.
  • Valve components are machined from solid brass bar stock.
  • Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Safety Notes:
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • Note: Many competitive Universal couplings are unable to match the performance capabilities of the Dixon U-Series. Although the universal coupler permits multiple series nipples to mate with one coupler, it is recommended to match like series couplers and nipples. When using a universal coupler, the lower performance rating between the coupler and the nipple must take precedence.
  • Dry Air: Some pneumatic applications require the pressurized air to be 'dried' to ensure proper operation of equipment and/or application of product (ie. Auto body shops). It is best to match like series couplers and nipples in these applications. If it is necessary to use a Universal coupler, lube the seal and valve area regularly to ensure reliable service.
Additional Information:
U-Series | Automatic Universal Coupler (Standard Hose Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose ID Material Length Max.
OD		 Hex Max. Operating
Pressure		 Burst Pressure
When Connected To:
2US2-B Socket/Female 1/4" 1/4" Brass 2.64"
(67.0mm)		 0.92"
(23.4mm)		 3/4" 300 PSI
(20 bar)
  • Steel DF Plug: 2,800 PSI (193 bar)
  • Steel CJ Plug: 9,500 PSI (655 bar)
  • Steel J Plug: 6,400 PSI (441 bar)
  • Steel M Plug: 4,300 PSI (297 bar)
2US3-B Socket/Female 1/4" 3/8" Brass 2.76"
(70.0mm)		 0.92"
(23.4mm)		 3/4" 300 PSI
(20 bar)
  • Steel DF Plug: 2,800 PSI (193 bar)
  • Steel CJ Plug: 9,500 PSI (655 bar)
  • Steel J Plug: 6,400 PSI (441 bar)
  • Steel M Plug: 4,300 PSI (297 bar)
3US3-B Socket/Female 3/8" 3/8" Brass 2.99"
(76.0mm)		 1.09"
(27.7mm)		 15/16" 300 PSI
(20 bar)
  • Steel DF Plug: 2,800 PSI (193 bar)
  • Steel CJ Plug: 9,500 PSI (655 bar)
  • Steel J Plug: 6,400 PSI (441 bar)
  • Steel M Plug: 4,300 PSI (297 bar)
