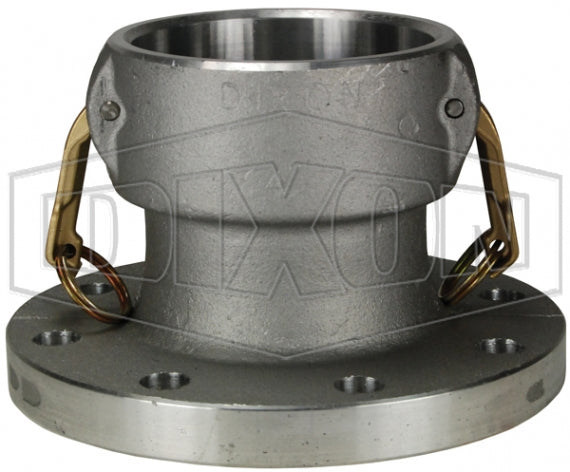

400-DL-AL by Dixon Valve | Cam & Groove Flange Adapter | 4" Coupler x 150# Flange | 15/16" Flange Thickness | Aluminum

400-DL-AL by Dixon Valve | Cam & Groove Flange Adapter | 4" Coupler x 150# Flange | 15/16" Flange Thickness | Aluminum

Save $19.38 Save $19.38
$242.18
$242.18 - $242.18
$242.18
$222.80
$222.80 - $222.80
$222.80

Dixon Valve
Cam & Groove Flange Adapter | Coupler x 150# Flange

Designed for use with liquids.
Specifications for Variant SKU: 400-DL-AL Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Female Cam & Groove, 4in 150# Flange
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Nitrile rubber gasket standard.
  • Flange has flat face.
  • Flanges are designed to mate with #150 flange.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Pressure rating is based on the seal of the mating part.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
Part Number Material Size Flange Thickness Max. Operating Pressure
200-DL-AL 356T6 Aluminum 2" 3/4" 250 PSI
300-DL-AL 356T6 Aluminum 3" 15/16" 125 PSI
400-DL-AL 356T6 Aluminum 4" 15/16" 100 PSI
600-DL-AL 356T6 Aluminum 6" 1" 75 PSI
800-DL-AL* 356T6 Aluminum 8" 1-1/8" 50 PSI

100-DL-SS 316 Stainless Steel 1" 21/32" 250 PSI
150-DL-SS 316 Stainless Steel 1-1/2" 25/32" 250 PSI
200-DL-SS 316 Stainless Steel 2" 7/16" 250 PSI
300-DL-SS 316 Stainless Steel 3" 7/16" 125 PSI
400-DL-SS 316 Stainless Steel 4" 7/16" 100 PSI
600-DL-SS 316 Stainless Steel 6" 5/8" 75 PSI

* Part is produced as a welded fabrication
