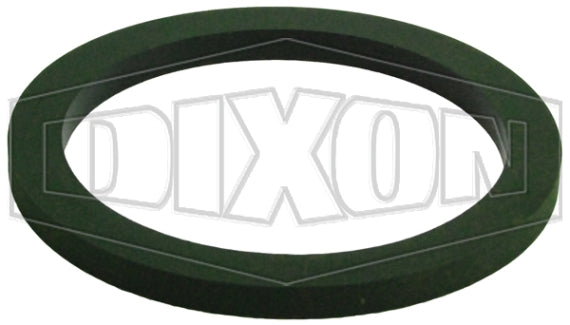

400-G-VI by Dixon Valve | Cam & Groove Gasket | 4" Size | Green FKM-A

Name: 400-G-VI by Dixon Valve | Cam & Groove Gasket | 4" Size | Green FKM-A
Brand: Dixon
SKU: 400-G-VI Dixon
Price: 20.4 USD
Availability: InStock

$20.40

Dixon Valve
Cam & Groove Gasket

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 400-G-VI Dixon
Seal Material(s):	FKM-A

Safety Notes:
The torque (force) required to close the handles on a pair of cam and groove fittings will vary according to the gasket chosen.

Cam & Groove Gasket Chart

Nitrile Gaskets

Size	Nitrile Rubber Part Number	Extra Thick Nitrile Rubber Part Number	White Nitrile Rubber Part Number
Size	Color: Black Color Code: 1 Blue Stripe	Color: Black Color Code: 2 Blue Stripes	Color: White Color Code: 1 Blue Stripe Made of FDA Approved Materials
1/2"	50-G-BU	-	-
3/4"	75-G-BU	-	-
1"	100-G-BU	100GTHK	-
1-1/4"	125-G-BU	125GTHK	-
1-1/2"	150-G-BU	150GTHK	-
2"	200-G-BU	200GTHK	200-G-WB
2-1/2"	250-G-BU	250GTHK	-
3"	300-G-BU	300GTHK	300-G-WB
4"	400-G-BU	400GTHK	400-G-WB
5"	500-G-BU	-	500-G-WB
6"	600-G-BU	600GTHK	-
8"	800-G-BU	-	-

FKM Gaskets

Size	Green FKM-A Part Number	Black FKM-A Part Number
Size	Color: Green Color Code: None	Color: Black Color Code: 1 Yellow Stripe
1/2"	50-G-VI	50-G-VIA
3/4"	75-G-VI	75-G-VIA
1"	100-G-VI	100-G-VIA
1-1/4"	125-G-VI	125-G-VIA
1-1/2"	150-G-VI	150-G-VIA
2"	200-G-VI	200-G-VIA
2-1/2"	250-G-VI	250-G-VIA
3"	300-G-VI	300-G-VIA
4"	400-G-VI	400-G-VIA
5"	500-G-VI	-
6"	600-G-VI	600-G-VIA
8"	800-G-VI	800-G-VIA

Neoprene Gaskets

Size	Neoprene Part Number	White Neoprene Part Number
Size	Color: Black Color Code: 1 Red Stripe	Color: White Color Code: None Made of FDA Approved Materials
1/2"	-	-
3/4"	75-G-NE	-
1"	100-G-NE	-
1-1/4"	125-G-NE	-
1-1/2"	150-G-NE	150-G-WNE
2"	200-G-NE	200-G-WNE
2-1/2"	250-G-NE	-
3"	300-G-NE	300-G-WNE
4"	400-G-NE	400-G-WNE
5"	-	500-G-WNE
6"	-	600-G-WNE
8"	-	-

Other Gasket Materials

Size	Ethylene Propylene Part Number	Silicone Part Number
Size	Color: Black Color Code: 1 White Stripe	Color: Red Color Code: None
1/2"	-	-
3/4"	75-G-EPR	-
1"	100-G-EPR	-
1-1/4"	125-G-EPR	-
1-1/2"	150-G-EPR	150-G-SIL
2"	200-G-EPR	200-G-SIL
2-1/2"	250-G-EPR	250-G-SIL
3"	300-G-EPR	300-G-SIL
4"	400-G-EPR	400-G-SIL
5"	-	-
6"	-	-
8"	-	-
