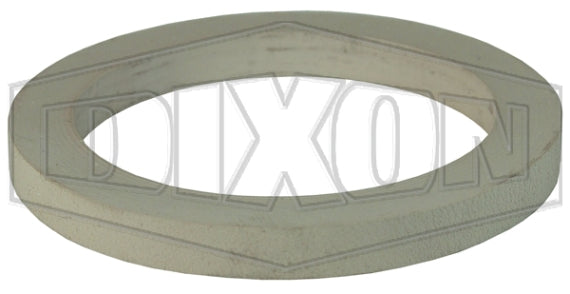

400-G-WNE by Dixon Valve | Cam & Groove Gasket (FDA Approved) | 4" Size | White Neoprene

400-G-WNE by Dixon Valve | Cam & Groove Gasket (FDA Approved) | 4" Size | White Neoprene

Save $4.10 Save $4.10
$10.25
$10.25 - $10.25
$10.25
$6.15
$6.15 - $6.15
$6.15

Dixon Valve
Cam & Groove Gasket
Specifications for Variant SKU: 400-G-WNE Dixon
Seal Material(s): White Neoprene
Applicable Specs & Approvals: Applicable FDA Requirements
Safety Notes:
  • The torque (force) required to close the handles on a pair of cam and groove fittings will vary according to the gasket chosen.
Cam & Groove Gasket Chart
Nitrile Gaskets

Size Nitrile Rubber
Part Number		 Extra Thick
Nitrile Rubber
Part Number		 White
Nitrile Rubber
Part Number
Color: Black
Color Code: 1 Blue Stripe		 Color: Black
Color Code: 2 Blue Stripes		 Color: White
Color Code: 1 Blue Stripe
Made of FDA Approved Materials
1/2" 50-G-BU - -
3/4" 75-G-BU - -
1" 100-G-BU 100GTHK -
1-1/4" 125-G-BU 125GTHK -
1-1/2" 150-G-BU 150GTHK -
2" 200-G-BU 200GTHK 200-G-WB
2-1/2" 250-G-BU 250GTHK -
3" 300-G-BU 300GTHK 300-G-WB
4" 400-G-BU 400GTHK 400-G-WB
5" 500-G-BU - 500-G-WB
6" 600-G-BU 600GTHK -
8" 800-G-BU - -
FKM Gaskets

Size Green FKM-A
Part Number		 Black FKM-A
Part Number
Color: Green
Color Code: None		 Color: Black
Color Code: 1 Yellow Stripe
1/2" 50-G-VI 50-G-VIA
3/4" 75-G-VI 75-G-VIA
1" 100-G-VI 100-G-VIA
1-1/4" 125-G-VI 125-G-VIA
1-1/2" 150-G-VI 150-G-VIA
2" 200-G-VI 200-G-VIA
2-1/2" 250-G-VI 250-G-VIA
3" 300-G-VI 300-G-VIA
4" 400-G-VI 400-G-VIA
5" 500-G-VI -
6" 600-G-VI 600-G-VIA
8" 800-G-VI 800-G-VIA
Neoprene Gaskets

Size Neoprene
Part Number		 White Neoprene
Part Number
Color: Black
Color Code: 1 Red Stripe		 Color: White
Color Code: None
Made of FDA Approved Materials
1/2" - -
3/4" 75-G-NE -
1" 100-G-NE -
1-1/4" 125-G-NE -
1-1/2" 150-G-NE 150-G-WNE
2" 200-G-NE 200-G-WNE
2-1/2" 250-G-NE -
3" 300-G-NE 300-G-WNE
4" 400-G-NE 400-G-WNE
5" - 500-G-WNE
6" - 600-G-WNE
8" - -
Other Gasket Materials

Size Ethylene Propylene
Part Number		 Silicone
Part Number
Color: Black
Color Code: 1 White Stripe		 Color: Red
Color Code: None
1/2" - -
3/4" 75-G-EPR -
1" 100-G-EPR -
1-1/4" 125-G-EPR -
1-1/2" 150-G-EPR 150-G-SIL
2" 200-G-EPR 200-G-SIL
2-1/2" 250-G-EPR 250-G-SIL
3" 300-G-EPR 300-G-SIL
4" 400-G-EPR 400-G-SIL
5" - -
6" - -
8" - -
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
