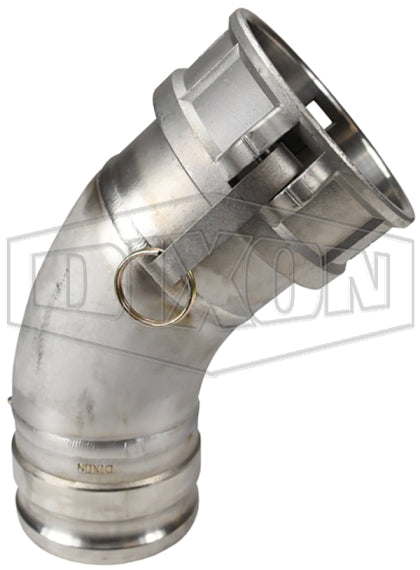

400DA-45SS by Dixon Valve | Cam & Groove Coupling | 45° Elbow | Type DA | 4" Adapter x 4" Coupler | 316 Stainless Steel

400DA-45SS by Dixon Valve | Cam & Groove Coupling | 45° Elbow | Type DA | 4" Adapter x 4" Coupler | 316 Stainless Steel

Save $50.06 Save $50.06
$703.86
$703.86 - $703.86
$703.86
$653.80
$653.80 - $653.80
$653.80

Dixon Valve
Cam & Groove Coupler | 45° Elbow | Type F | Adapter x Coupler

Designed for use with liquids.
Specifications for Variant SKU: 400DA-45SS Dixon
Shape (Orientation): 45 Degree
Cam Type: Other
Ends Configuration: 4in Male Cam & Groove, 4in Female Cam & Groove
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Seal: Nitrile Rubber
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Unplated Malleable Iron
Part Number		 Size Maximum Operating Pressure
200DA-45AL* 200DA-45SS* 2" 250 PSI
300DA-45AL 300DA-45SS* 3" 125 PSI
400DA-45AL 400DA-45SS* 400DA-45MI 4" 100 PSI
600DA-45AL 6" 75 PSI

* Parts are produced as a welded fabrication.
