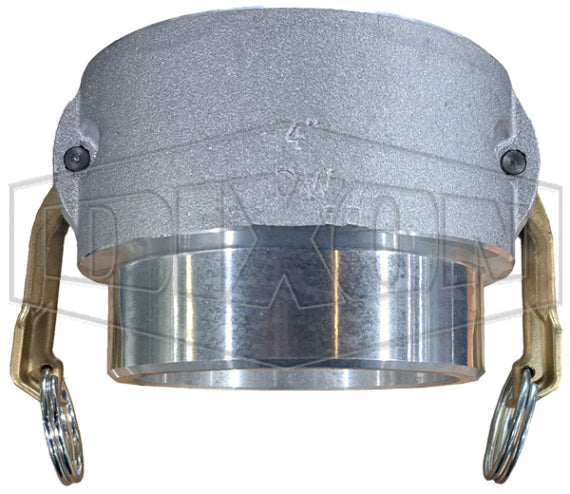

400DWBPSTAL by Dixon Valve | Cam & Groove Coupler for Welding | 4" Coupler Butt Weld x Schedule 40 Pipe/Socket Weld to Nominal Tubing | Aluminum

400DWBPSTAL by Dixon Valve | Cam & Groove Coupler for Welding | 4" Coupler Butt Weld x Schedule 40 Pipe/Socket Weld to Nominal Tubing | Aluminum

Save $45.73 Save $45.73
$114.33
$114.33 - $114.33
$114.33
$68.60
$68.60 - $68.60
$68.60

Dixon Valve
Cam & Groove Coupler for Welding | Coupler Butt Weld x Schedule 40 Pipe/Socket Weld to Nominal Tubing

Designed for use with liquids.
Specifications for Variant SKU: 400DWBPSTAL Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Weld End, 4in Female Cam & Groove
Material(s): Aluminum
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Final weld preparation, as with all weld fittings, is the responsibility of the welder.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Bore Max. Operating Pressure
- 75DWBPSTSS 3/4" 0.765" 250 PSI
- 100DWBPSTSS 1" 1.015" 250 PSI
150DWBPSTAL 150DWBPSTSS 1-1/2" 1.515" 250 PSI
200DWBPSTAL 200DWBPSTSS 2" 2.015" 250 PSI
300DWBPSTAL 300DWBPSTSS 3" 3.015" 125 PSI
400DWBPSTAL 400DWBPSTSS 4" 4.015" 100 PSI
500DWBPSTAL - 5" 5.015" 75 PSI
600DWBPSTAL - 6" 6.020" 75 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
