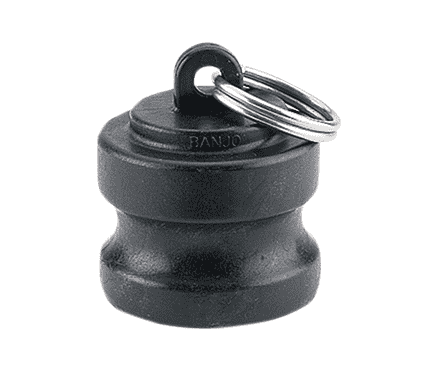

400PL Banjo Polypropylene Cam Lever Coupling - 4" Plug - Female Coupler - 75 PSI - Gasket: N/A

400PL by Banjo | Cam Lever Coupling | 4" Plug Female Coupler | 75 PSI | No Gasket | Polypropylene

Save $9.10

$25.51

$25.51 - $25.51

$25.51

$16.41

$16.41 - $16.41

$16.41

Banjo Cam Lever Couplings - Polypropylene Cam Lever Couplings - 4" Series

Specifications for Variant SKU: 400PL Banjo
Shape (Orientation):	Straight
Cam Type:	Type DP
Ends Configuration:	4in Male Cam & Groove
Material(s):	Polypropylene

Applications:
Agriculture Industrial Fluids
Features:
Stainless steel rings, arms & pins Most complete line of polypropylene couplings available Versatile - interchangeable with all types of cam lever couplers Precision molded - insures a uniform and accurate fit Durable - Polypropylene is glass reinforced for rugged strength and durability Smooth operating - finger rings are designed for easy opening of cam levers Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread BSP threads available 1" - 3" sizes (excluding 1-1/4") Economical and superior in performance Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL! WARNING: Couplings should not be disconnected under pressure or with liquid in the line. For other sizes & replacement parts, see: Banjo Polypropylene Cam Lever Couplings & Replacement Parts
Guide:

Part Number	Type	End Type	Max PSI	Gasket
400A	Part A	4" Male Adapter x 4" Female NPT	75 PSI	N/A
400B	Part B	4" Female Coupler with 3 Arms x 4" Male NPT	150 PSI	EPDM
400C	Part C	4" Female Coupler with 3 Arms x 4" Hose Shank	150 PSI	EPDM
400D	Part D	4" Female Coupler with 3 Arms x 4" Female NPT	100 PSI	EPDM
400E	Part E	4" Male Adapter x 4" Hose Shank	50 PSI	N/A
400F	Part F	4" Male Adapter x 4" Male NPT	75 PSI	N/A
400CAP	Part CAP	4" Cap with 2 Arms - Male Adapter	100 PSI	EPDM
400PL	Part PL	4" Plug - Female Coupler	75 PSI	N/A

Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size .b½ª _x0002_

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
