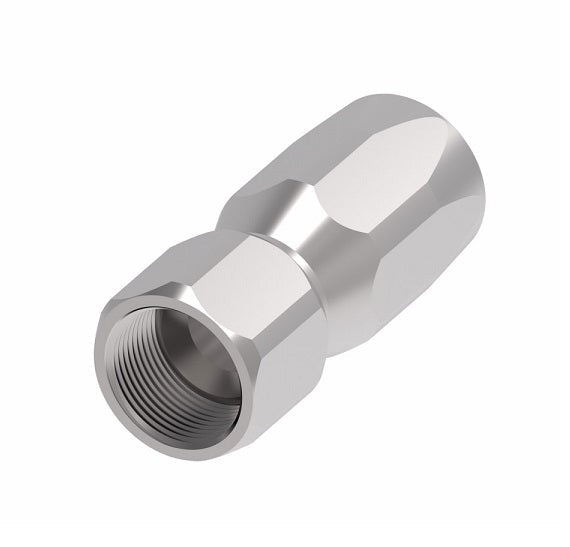

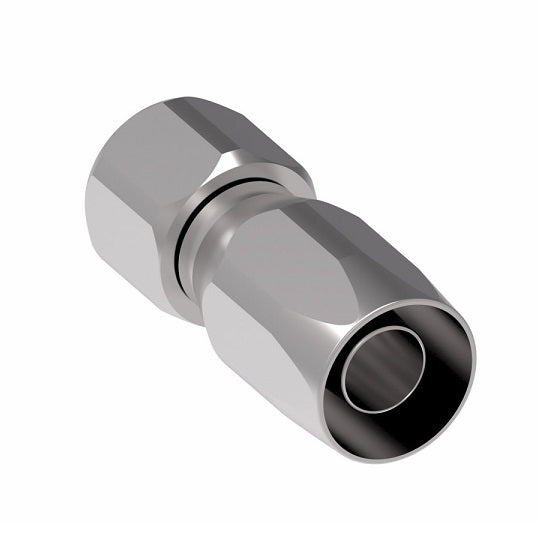

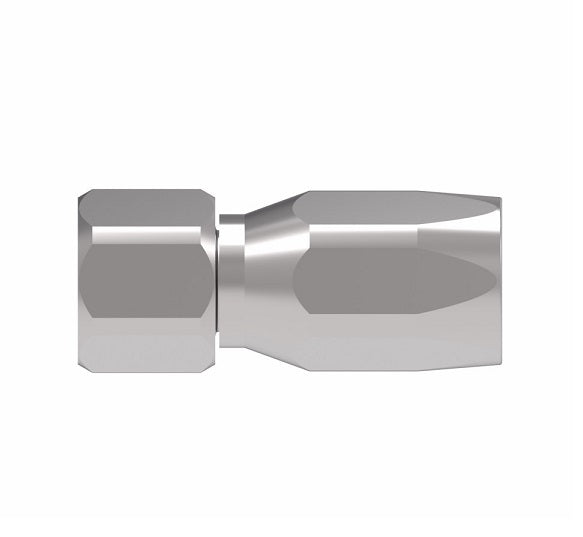

401-6S Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Reusable Hose Fitting (3 Piece) | -06 Female SAE 45° Swivel x -06 Reusable Hose End | Steel

401-6S Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Reusable Hose Fitting (3 Piece) | -06 Female SAE 45° Swivel x -06 Reusable Hose End | Steel

Name: 401-6S Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Reusable Hose Fitting (3 Piece) | -06 Female SAE 45° Swivel x -06 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 401-6S Danfoss
Price: 12.58 USD
Availability: InStock

$12.58 - $12.58

$12.58

$12.58 - $12.58

$12.58

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female SAE 45° Swivel - Straight

Three Piece Fitting.

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 401-6S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female SAE 45 Flare, 3/8in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 Series \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Brass Part Number	Hose Size	Thread	A	D	EØ
401-4S*	401-4B*	-04	7/16-20	1.75"	1.00"	0.17"
401-5S*	-	-05	1/2-20	1.90"	1.12"	0.23"
401-6S*	401-6B*	-06	5/8-18	2.05"	1.15"	0.30"
401-8S*	401-8B*	-08	3/4-16	2.52"	1.38"	0.39"
401-10S*	401-10B*	-10	7/8-14	2.80"	1.51"	0.48"
401-12S*	401-12B*	-12	1-1/16-14	3.02"	1.45"	0.61"

* Requires tools for assembly.
