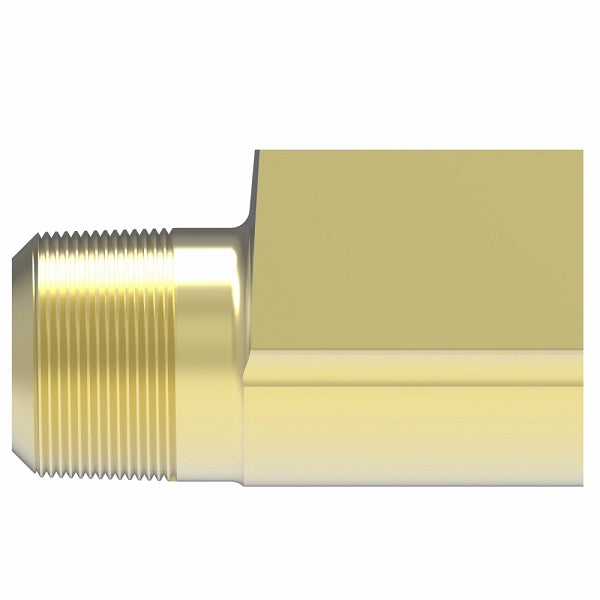

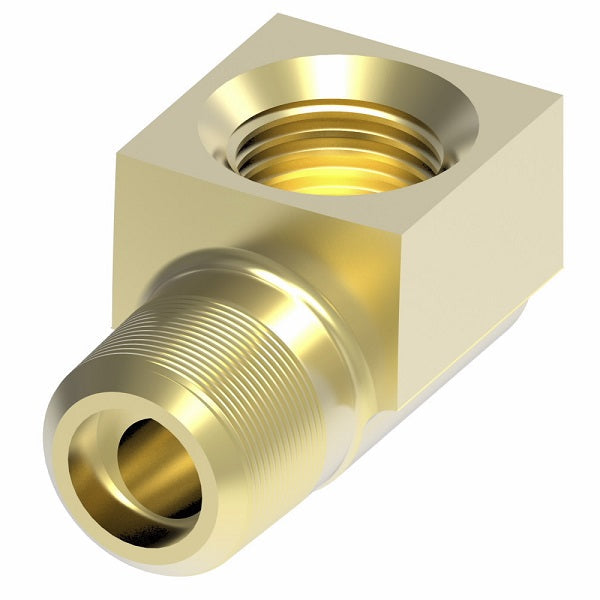

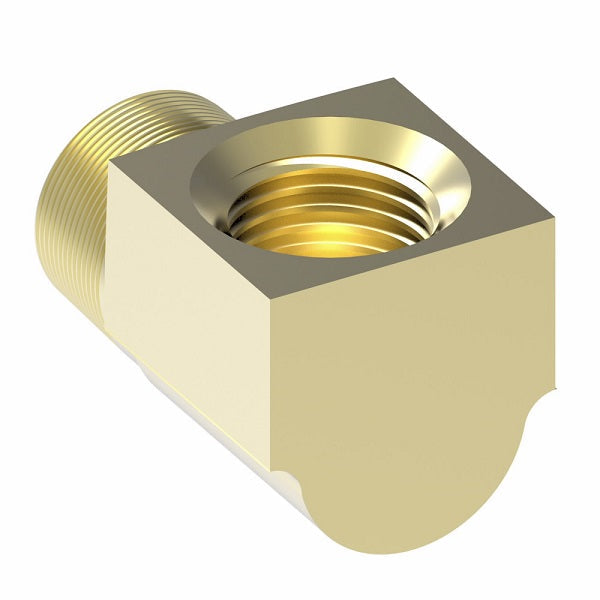

402X8X8 by Danfoss | Male NPTF/Inverted Flare 90° Elbow Adapter | 1/2" Male NPTF x 1/2" Female SAE Inverted Flare | Brass
402X8X8 by Danfoss | Male NPTF/Inverted Flare 90° Elbow Adapter | 1/2" Male NPTF x 1/2" Female SAE Inverted Flare | Brass
402X8X8 by Danfoss | Male NPTF/Inverted Flare 90° Elbow Adapter | 1/2" Male NPTF x 1/2" Female SAE Inverted Flare | Brass
402X8X8 by Danfoss | Male NPTF/Inverted Flare 90° Elbow Adapter | 1/2" Male NPTF x 1/2" Female SAE Inverted Flare | Brass

402X8X8 by Danfoss | Male NPTF/Inverted Flare 90° Elbow Adapter | 1/2" Male NPTF x 1/2" Female SAE Inverted Flare | Brass

$37.93 - $37.93
$37.93
$37.93 - $37.93
$37.93

Aeroquip® by Danfoss
Male NPTF/Inverted Flare Adapter
Male NPTF x Female Inverted Flare
90° Elbow
Specifications for Variant SKU: 402X8X8 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Male NPTF, 1/2in Female Inverted Flare
Material(s): Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • Hydraulic brake, power steering, fuel lines and transmission cooler lines.
Advantages:
  • Very low cost and reusable.
  • Seats and threads are internal and protected.
  • Compact, excellent vibration life.
  • Short nut affords very close tube bends.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 040202
  • Listed by Underwriter's Laboratories (available on special order) for fuel equipment, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-28 3/8-24 7/16-24 1/2-20 5/8-18 11/16-18 3/4-18 7/8-18 1-1/16-16 1-3/16-16 1-5/16-16
Part Number
Brass		 Part Number
Brass with Sealant 		Tube O.D. Male Pipe Thread D D1 L L1 M X
402X2 - 1/8" 1/8" 0.78" 0.116" 0.80" 0.47" 0.27" 0.42"
402X3 - 3/16" 1/8" 0.125" 0.125" 0.85" 0.47" 0.27" 0.47"
402X4 402X4Z 1/4" 1/8" 0.188" 0.177" 0.92" 0.55" 0.33" 0.53"
431X4* - 1/4" 1/8" 0.188" 0.062" 0.91" 0.53" 0.33" 0.53"
402X4X4 - 1/4" 1/4" 0.188" 0.188" 1.09" 0.58" 0.28" 0.56"
402X5 402X5Z 5/16" 1/8" 0.219" 0.219" 0.98" 0.67" 0.47" 0.59"
402X5X4 - 5/16" 1/4" 0.219" 0.219" 1.16" 0.75" 0.45" 0.59"
402X6X2 - 3/8" 1/8" 0.281" 0.219" 1.14" 0.75" 0.54" 0.76"
402X6 402X6Z 3/8" 1/4" 0.281" 0.281" 1.32" 0.82" 0.53" 0.76"
402X6X6 - 3/8" 3/8" 0.281" 0.312" 1.32" 0.84" 0.50" 0.75"
402X8 - 1/2" 3/8" 0.406" 0.375" 1.48" 0.94" 0.59" 0.92"
402X8X8 - 1/2" 1/2" 0.406" 0.406" 1.67" 1.09" 0.66" 0.91"
402X12X8 - 3/4" 1/2" 0.626" 0.531" 2.09" 1.30" 0.85" 1.25"
402X14 - 7/8" 3/4" 0.750" 0.750" 2.12" 1.46" 0.94" 1.38"
402X16 - 1" 1" 0.812" 0.812" 2.44" 1.70" 1.02" 1.50"

* .062 dia. restricted hole through pipe end. Available on special order with any restricted hole size up to .172 dia.
