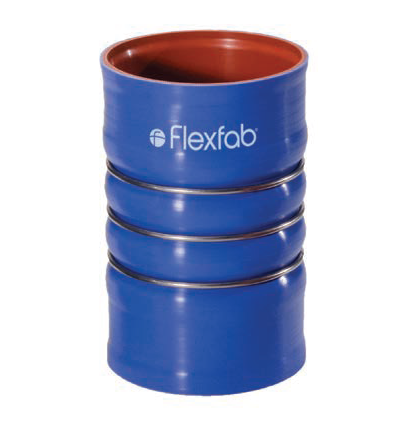

4074-0002 FlexFab 4-ply Heavy Wall Charge Air Connector (CAC) Cold Side - 3.00" ID - 3.23" OD - Blue - 6"

4074-0002 by FlexFab | 4-ply Heavy Wall Charge Air Connector (CAC) Cold Side | 3.00" ID | 3.23" OD | Blue | 6" Overall Length

Save $4.38 Save $4.38
$43.81
$43.81 - $43.81
$43.81
$39.43
$39.43 - $39.43
$39.43

Flexfab Industrial Hose - Heavy Wall Charge Air Connector (CAC) Hot Side or Cold Side & Duraguard™
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4074-0002 Flexfab
Shape (Orientation): Straight
Material(s): Silicone Coated Fabric, Stainless Steel
Construction:
  • Hot or Cold Side:
    • 4-Ply Heavy Duty Silicone Coated Meta-Aramid Fabric with Heavy Duty Stainless Steel Pressure Retention Rings
  • Duraguard™:
    • 4-Ply Heavy Duty Silicone Coated Meta-Aramid Fabric with Heavy Duty Stainless Steel Pressure Retention Rings
    • High temperature fluorocarbon elastomeric liner
Specifications:
  • Hot or Cold Side:
    • Temperature range is -65°F (-54°C) to +500°F (+260°C)
    • Wall thickness is .117"/.163"
  • Duraguard™:
    • Temperature range is -65°F (-54°C) to +500°F (+260°C)
    • Wall thickness is .117"/.163"
    • Designed to meet the EPA 2007 and EURO IV & V requirements for reduced emissions
Applications:
  • Hot or Cold Side:
    • Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold
  • Duraguard™:
    • Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold
    • Fluorocarbon lining eliminates closed crankcase vapors from permeating through the sidewall of the intercooler connection bellows at 500°F (260°C)
Part Number Inside Diameter Outside Diameter Overall Length Convolutes(Humps) Stainless SteelRings Max Operating Pressure - PSI WeightLBS Clamp
Hot Side
4076-0001 2.50" 2.73" 6.00" 2 3 80 PSI 0.5 lbs FLX2583-0250
4074-0001 3.00" 3.23" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0306
4073-0001 3.50" 3.73" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0356
4070-0001 4.00" 4.23" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0406
4075-0001 4.50" 4.73" 6.00" 2 3 60 PSI 0.5 lbs FLX2588-0456
Cold Side
4076-0002 2.50" 2.73" 6.00" 2 3 80 PSI 0.5 lbs FLX2583-0250
4074-0002 3.00" 3.23" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0306
4073-0002 3.50" 3.73" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0356
4070-0002 4.00" 4.23" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0406
4075-0002 4.50" 4.73" 6.00" 2 3 60 PSI 0.5 lbs FLX2588-0456
Duraguard™
1076-0003 2.50" 2.73" 6.00" 2 3 80 PSI 0.5 lbs FLX2583-0250
1074-0003 3.00" 3.23" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0306
1073-0003 3.50" 3.73" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0356
1070-0003 4.00" 4.23" 6.00" 2 3 70 PSI 0.5 lbs FLX2588-0406
1075-0003 4.50" 4.73" 6.00" 2 3 60 PSI 0.5 lbs FLX2588-0456
*Specifications for reference only. Specific test data available on request.
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
