40IT400 Dixon 4" Sanitary PTFE I-Line Gasket - White Virgin

40IT400 Dixon Valve 4" Sanitary PTFE I-Line Gasket - White Virgin

Save $1.63 Save $1.63
$4.07
$4.07 - $4.07
$4.07
$2.44
$2.44 - $2.44
$2.44

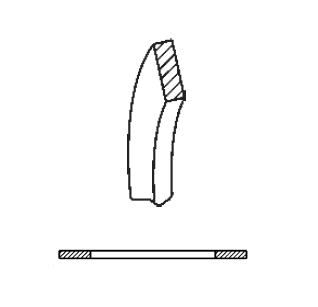

Dixon Sanitary Fittings Sanitary I-Line Gasket - PTFE I-Line Gasket - White Virgin
Specifications for Variant SKU: 40IT400 Dixon
Seal Material(s): PTFE
Features:
  • Color code: No dot
  • Meets 21CFR 177.1550.
  • Passed USP class VI cytotoxicity testing.
  • 1/16" thick.
  • Note: PTFE is a material subject to plastic flow. When cycled through heat and then cooled down in process lines, PTFE gaskets will not return to the original configuration and it will continue to compress as the cycling continues. This plastic flow will allow leakage if clamp torques are not maintained.
Part Number Tube OD Color Code Weight (Lbs.)
40IT100 1" No dot 0.0050
40IT150 1-1/2" No dot 0.0050
40IT200 2" No dot 0.0065
40IT250 2-1/2" No dot 0.0100
40IT300 3" No dot 0.0110
40IT400 4" No dot 0.0150
40IT600 6" No dot 0.0750
40IT800 8" No dot 0.0750
