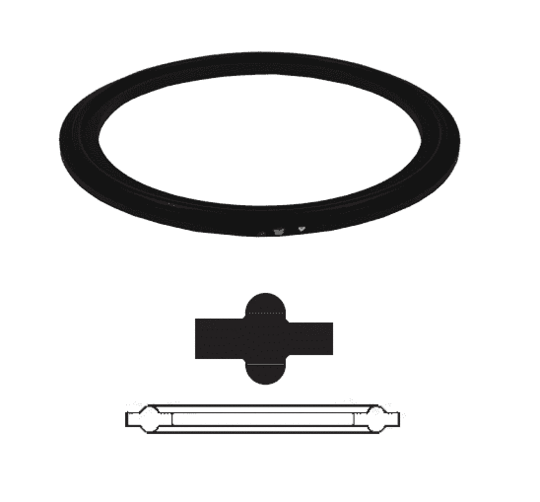

40MP-EZ600 Dixon Valve 6" EPDM Sanitary Metal Detectable Clamp Gasket

40MP-EZ600 Dixon Valve 6" EPDM Sanitary Metal Detectable Clamp Gasket

Save $11.69 Save $11.69
$29.22
$29.22 - $29.22
$29.22
$17.53
$17.53 - $17.53
$17.53

Dixon Sanitary Fittings Sanitary Metal Detectable Clamp Gasket - EPDM Metal Detectable Clamp Gasket

Metal detectable gaskets are impregnated with stainless steel particles. The addition of stainless steel allows a gasket or gasket pieces to be found with metal detection equipment.
Specifications for Variant SKU: 40MP-EZ600 Dixon
Seal Material(s): EPDM
Special Properties: Metal Detectable
Features:
  • Resistant to steam, water and base solutions
  • Temperature Range: -70°F to 310°F (-57°C to 154°C)
Part Number Size Dimensions
 Weight (Lbs.)
A B C
40MP-EZ100 1" 1.98" 0.90" 1.72" 0.1000
40MP-EZ150 1-1/2" 1.98" 1.40" 1.72" 0.0090
40MP-EZ200 2" 2.52" 1.90" 2.22" 0.0100
40MP-EZ250 2-1/2" 3.05" 2.40" 2.78" 1.0000
40MP-EZ300 3" 3.58" 2.90" 3.28" 0.0200
40MP-EZ400 4" 4.68" 3.87" 4.34" 0.0300
40MP-EZ600 6" 6.51" 5.82" 6.16" -
